CA-SCTxxP series
Split-Core CT, For PM-2133DP, PM-3133P & PM-4324(A)P Series
Features
Introduction
| Model | Input Current (Max) | Input Current (Min) | Inner Diameter | Accuracy | Input Frequency | Output Signal | Cable Length |
CT Ratio (for PM-2133DP / PM-3133P / PM-4324(A)P Series) |
|---|---|---|---|---|---|---|---|---|

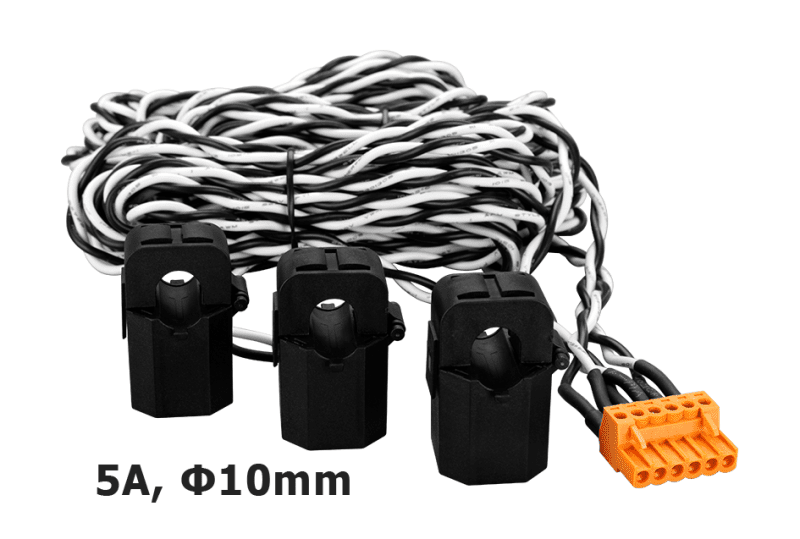

| CA-SCT10P-005A-L040-3P | 5A | 0.05A | 10 mm | 0.5% | 50/60 Hz | 333 mV | 4 M | 1:1 |
| CA-SCT10P-60A-L040-3P | 60A | 0.05A | 10 mm | 1% | 12:1 | |||

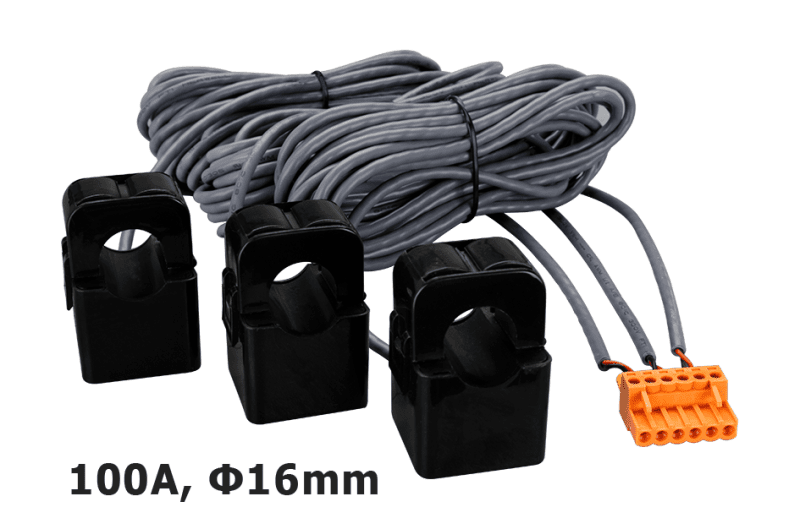

| CA-SCT16P-100A-L040-3P | 100A | 0.1A | 16 mm | 1% | 20:1 | |||

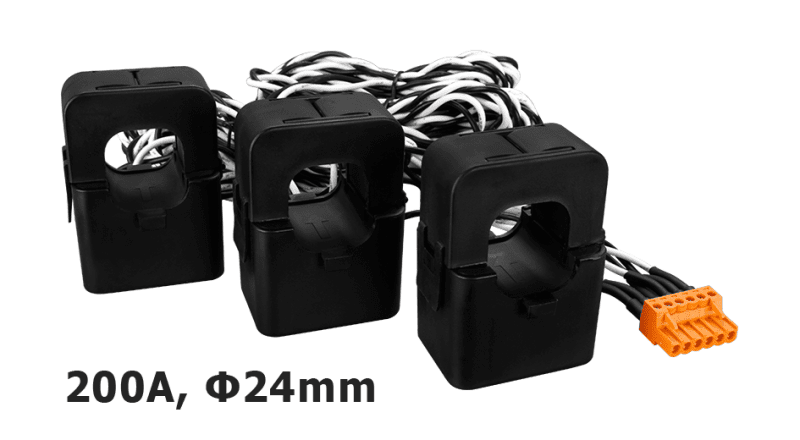

| CA-SCT24P-200A-L040-3P | 200A | 0.15A | 24 mm | 1% | 40:1 | |||
| CA-SCT36P-300A-L040-3P | 300A | 0.3A | 36 mm | 0.5% | 60:1 | |||

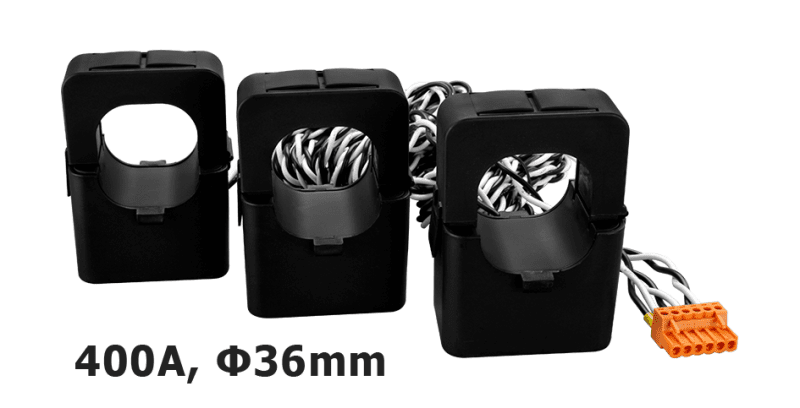

| CA-SCT36P-400A-L040-3P | 400A | 0.3A | 36 mm | 0.5% | 80:1 | |||
| PS: Compatible with PM-2133DP, PM-3133P and PM-4324(A)P series. Accuracy: ±2% ~ ±5% | ||||||||
