Cat M1/NB1/EGRPS Module
Features
- LTE Cat M1/Cat NB1/EGPRS module with ultra-low power consumption
- Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices
- Easy migration from GSM/GPRS, UMTS/HSPA and LTE modules
- Region of Production : China
Introduction

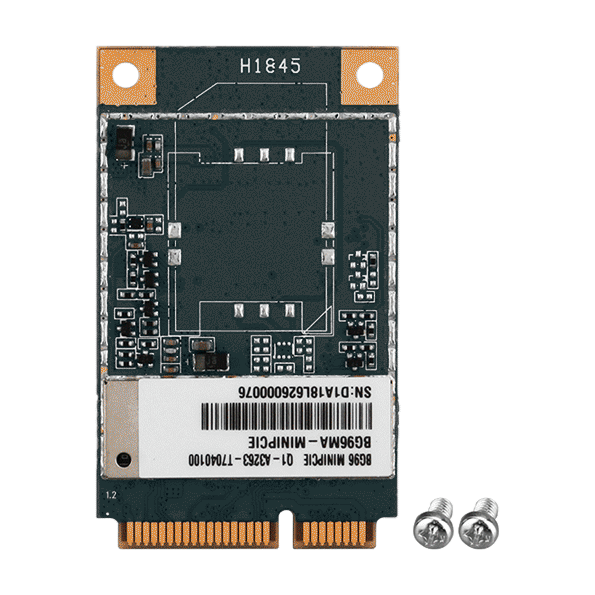

The BG96 is a LTE Cat M1/Cat NB1/EGPRS module offering a maximum data rate of 375Kbps downlink and 375Kbps uplink.
It features global frequency bands, ultra-low power consumption and PCI Express® Mini Card standard interface.
It features global frequency bands, ultra-low power consumption and PCI Express® Mini Card standard interface.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| 2G System | |
|---|---|
| Data Transmission Rate | GPRS Downlink transfer: Max. 107 kbps; Uplink transfer: Max. 85.6kbps |
| Frequency Band | 850/900/1800/1900 MHz |
| GPRS Multi-slot | GPRS class 10/8; GPRS station class B |
| Power Class | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz) |
| SMS Format | Sending: UCS2/7bits Receiving: UCS2/7bits |
| 4G System | |
|---|---|
| Data Transmission Rate | LTE(Cat.M1 & Cat. NB1) Downlink transfer: Max. 375 Kbps; Uplink transfer: Max. 375 Kbps |
| Frequency Band | (Cat. M1 / Cat. NB1) FDD LTE: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 TDD LTE: B39 (For Cat M1 Only) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30.0 x 51.0 x 4.9 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -35°C ~ +75°C |
| Storage Temperature | -40°C ~ +85°C |
