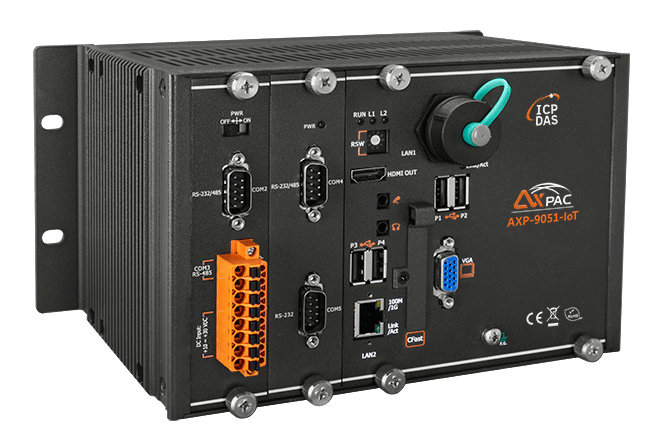

AXP-9051-IoT
Metal Standard PAC with i5-8365UE CPU and Win10 IoT
Features
• Windows 10 IoT Enterprise LTSC (64-bit)
• Intel® Core™ i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T)
• 16 GB DDR4 SDRAM
• 128 GB SSD
• VGA / HDMI Display Output
• 2x 10/100/1000M Ethernet Ports
• Redundant Power Input
• Intel® Core™ i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T)
• 16 GB DDR4 SDRAM
• 128 GB SSD
• VGA / HDMI Display Output
• 2x 10/100/1000M Ethernet Ports
• Redundant Power Input
Introduction
The AXP-9051-IoT are Windows 10 IoT based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel Core i5-8365UE CPU, various connectivity including dual Gigabit Ethernet, VGA, HDMI, USB port, RS-232 and RS-485 interface and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules.
AXP-9000-IoT has a built-in Windows 10 IoT Enterprise LTSC operating system, which can support both the Universal Windows App and traditional Windows applications simultaneously. For software development tools, it can maintain maximum sharing with Windows 10, and applications can be quickly ported to AXP-9000 and deployed in a variety of harsh environments.
AXP-9000-IoT has a built-in Windows 10 IoT Enterprise LTSC operating system, which can support both the Universal Windows App and traditional Windows applications simultaneously. For software development tools, it can maintain maximum sharing with Windows 10, and applications can be quickly ported to AXP-9000 and deployed in a variety of harsh environments.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise LTSC (64-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Compact Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
|---|---|
| CPU | Intel® Core™ Whiskey Lake U i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T) |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 16 GB DDR4 SDRAM (SODIMM slots with a 16 GB DDR4 x 1) |
| Storage | 1x128 GB SSD (SATAIII) 1x32 GB CFast card (SATAIII) |
| Non-Volatile Memory | 128 KB MRAM 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | 1xVGA, 1xHDMI |
| Resolution | VGA 1920 x 1200 @ 60Hz HDMI 4096 x 2160 @ 30P |
| LED Indicators | |
|---|---|
| Status | 1 x System 2 x Power 2 x Programmable |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Power Switch | Yes |
| Audio | |
|---|---|
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Intel® I219LM) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (3000 VDC Isolated) 1 x RS-485 (3000 VDC Isolated) 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
|---|---|
| Ports | 2 x USB 2.0 2 x USB 3.0 |
| Power | |
|---|---|
| Capacity | 80 W supply to CPU and backplane, 40 W supply to I/O expansion slots and USB ports, 120 W in total |
| Input Range | +19 ~ 30 VDC (2 kV Isolated ) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 30.5 W (Typical) 71 W (CPU Full Load) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 239 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Cooling Type | CPU Heat Sink and 180,000 hour long-life fan with Smart Fan function |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
