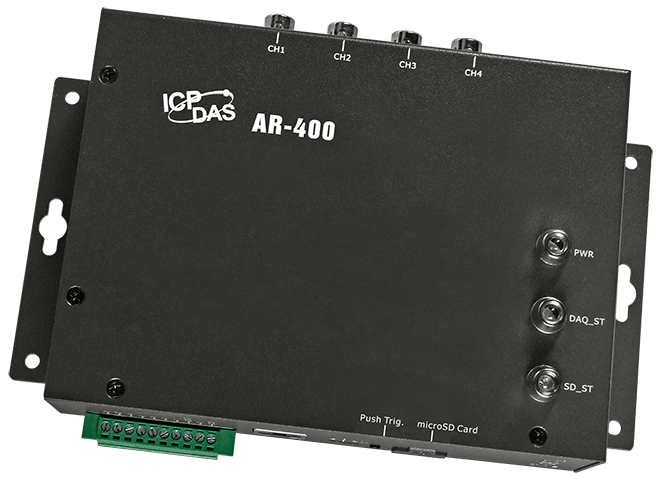

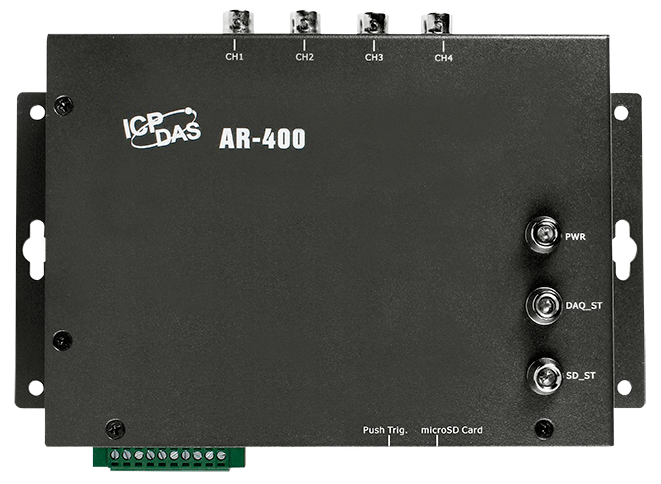

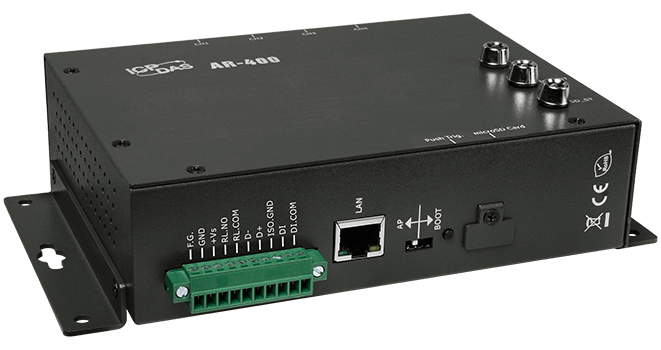

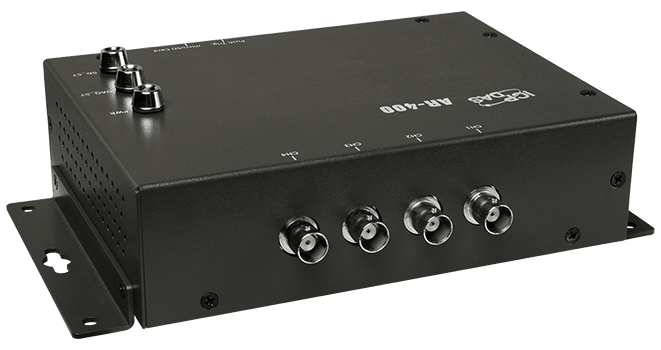

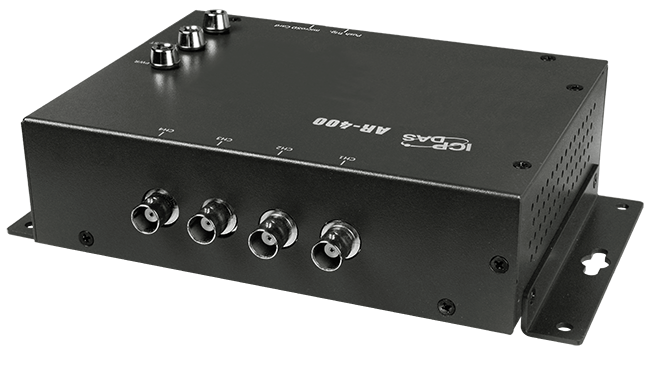

AR-400

4-channel Accelerometer Data Logger Device
AR-400
AR-400
AR-400
AR-400
AR-400
AR-400
AR-400
AR-400
AR-400
AR-400

Features

  • 4 simultaneous, 16-bit resolution ADC.
  • Support 2 or 4 IEPE input,and built-in 3 mA excitation current.
  • AR-400 support sample rate: 125kHz、100kHz、50kHz.
  • Max. Recording time:30 m (5kHz)
  • Flexible trigger modes: Push button trigger、Schedule trigger、analog threshold trigger、digital input trigger and utility remote trigger.
  • Supports 4 to 32 GB micro SDHC type flash.
  • 4 kV Contact ESD protection for any terminal.
  • Wide range of power input (+10 to +30 VDC) and operating temperature (-25 to 75°C).
CE UKCA FCC RoHS WEEE

Introduction

The AR-200/AR-400 series is a range of high-performance dynamic signal acquisition modules that are designed specifically for vibration monitoring and analysis. The maximum simultaneous sampling rate for each channel on the AR-200 and AR-400 is up to 200k-Hz and 125k-Hz respectively. The AR-200/AR-400 modules include a built-in 3mA excitation current to power the Integrated Electronics Piezo-Electric (IEPE) accelerometers and a 16-bit A/D converter. The data acquired by the AR-200/AR-400 is saved on a Micro SD card that can be used for offline vibration analysis. ICP DAS also provides a utility that can be installed on the Host PC that can be easily configured for different triggering modes, as well as changing the sampling rate, and scheduling the sampling time for various applications using the development tools. Consequently, the AR-200/AR-400 modules are recommended as your best choice for vibration monitoring and measurement.

Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES AR-400     CR DESCRIPTIONAccelerometer Data Logger Device, 4-ch IEPE Input (RoHS)
This combination include other products.

Similar Products

LED Indicators
Status 1 x PWR
1 x DAQ
1 x SD
Analog Input
Channels 4 (simultaneous sampling)
Type IEPE
Range Voltage: ±10 V
Current: 3 mA
Resolution 16 bit
Sampling Rate 5, 10, 20, 50, 100, 125 (kHz)
Trigger Mode Push-button triggering, timed triggering, threshold triggering, digital input triggering, remote triggering by utility software
Digital Input
Channels 1, Dry Contact: Source / Wet Contact: Sink or Source
ON Voltage Level Dry: Close to GND
Wet: +10 VDC to +50 VDC
OFF Voltage Level Dry: Open
Wet: +4 VDC max
Relay Output
Channels Form A x 1
Type Power Relay
Contact Rating 5A@250 VAC (47 ~ 63 Hz)
5A@30 VDC
Operate Time 10 ms
Release Time 5 ms
Electrical Endurance 100,000 times min
Mechanical Endurance 20,000,000 times min
Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)
Power
Consumption 4.3 W
Mechanical
Dimensions (mm) 197 x 139 x 57 (W x L x H)
Installation Wall mounting, rail type
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ 80 °C
Humidity 10 ~ 90% RH, non-condensing
