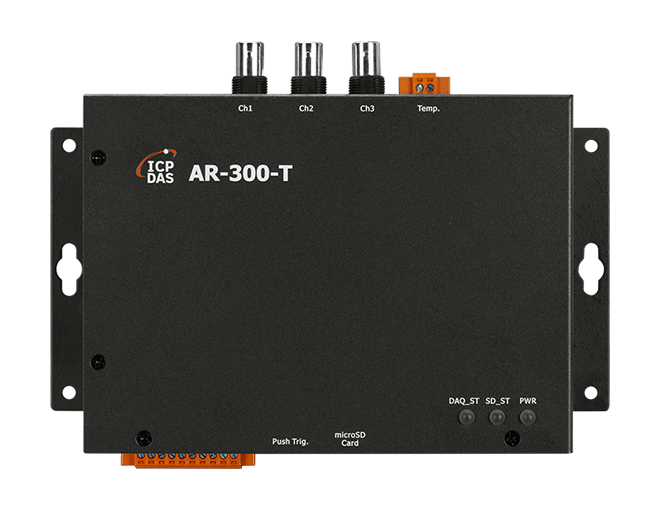

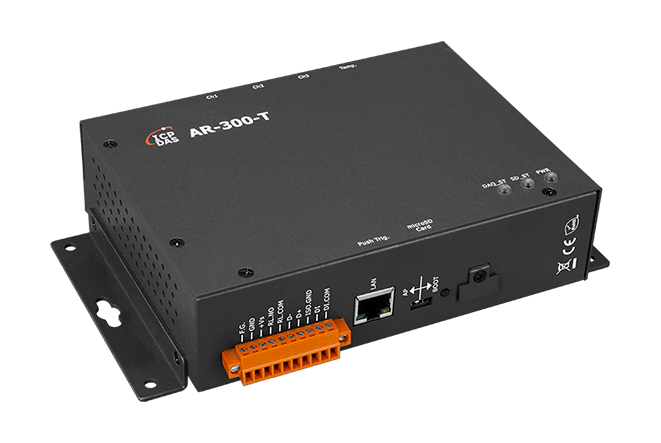

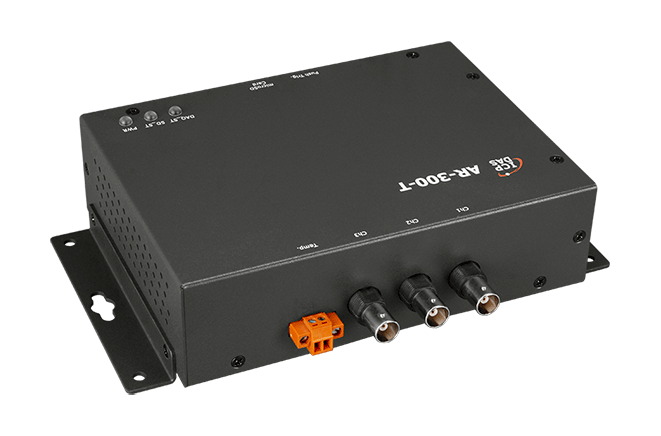

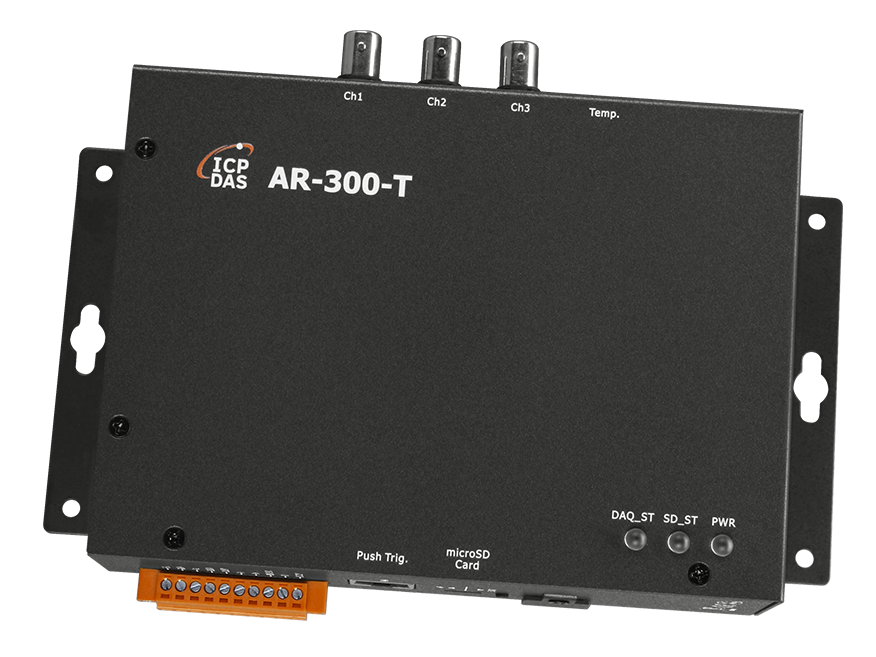

AR-300-T
Accelerometer Data Logger Device with 3-ch IEPE Input, 1-ch Thermistor Input
Features
- 3 simultaneous, 16-bit resolution ADC
- Support 3-ch IEPE input, 1-ch Thermistor input, and built-in 3 mA excitation current.
- Support sampling rate: 125kHz/100kHz/50kHz/20kHz/10kHz/5kHz
- Max. Recording time: 30 m (5kHz)
- Flexible trigger modes:
* Push button trigger
* Schedule trigger
* Analog threshold trigger
* Digital input trigger
* Software remote trigger - Supports 4 to 32 GB micro SDHC type flash
Introduction
AR-300-T is a high-performance dynamic signal acquisition module equipped with 3 channel IEPE input providing simultaneous-sampling at up to 125 kHz per channel and 1 channel Thermistor input. The module has a built-in 16- bit resolution ADC and 3 mA excitation current to measure IEPE sensors, and a micro SDHC flash card for data logging. It also supports flexible trigger modes, sampling rates, and recording time span, making it ideal for signal measurement in vibration applications.
Applications
-
Big data analysis
-
system monitoring
-
trend analysis
-
predictive maintenance
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| LED Indicators | |
|---|---|
| Status | 1 x PWR 1 x DAQ 1 x SD |
| Temperature Measurement | |
|---|---|
| Sensor Type | Thermistor |
| Channels | 1 |
| Range | 0 °C ~ +80 °C |
| Accuracy | ±2 °C |
| Installation | Wall-mount |
| Analog Input | |
|---|---|
| Channels | 3 (simultaneous sampling) |
| Type | IEPE |
| Range | Voltage: ±10 V Current: 3 mA |
| Resolution | 16 bit |
| Sampling Rate | 5, 10, 20, 50, 100, 125 (kHz) |
| Trigger Mode | Push-button triggering, timed triggering, threshold triggering, digital input triggering, remote triggering by utility software |
| Digital Input | |
|---|---|
| Channels | 1, Dry Contact: Source / Wet Contact: Sink or Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 VDC to +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +4 VDC max |
| Relay Output | |
|---|---|
| Channels | Form A x 1 |
| Type | Power Relay |
| Contact Rating | 5A@250 VAC (47 ~ 63 Hz) 5A@30 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Electrical Endurance | 100,000 times min |
| Mechanical Endurance | 20,000,000 times min |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| Power | |
|---|---|
| Consumption | 4.3 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 197 x 139 x 57 (W x L x H) |
| Installation | Wall mounting, rail type |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ 80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
