Wi-Fi Access Point
Features
- Thin AP
- Wall-Mount Wi-Fi Access Point
- IEEE 802.11a/b/g/n/ac Wi-Fi Compliance
- Configurable AP Transmit Power and Channel
- Supports WEP, WPA, WPA2, WPA-PSK, WPA2-PSK and 802.1x
- Segmented guest and corporate access with multiple SSIDs
- One IEEE 802.3 af (PoE), or DC12V/1A
Introduction

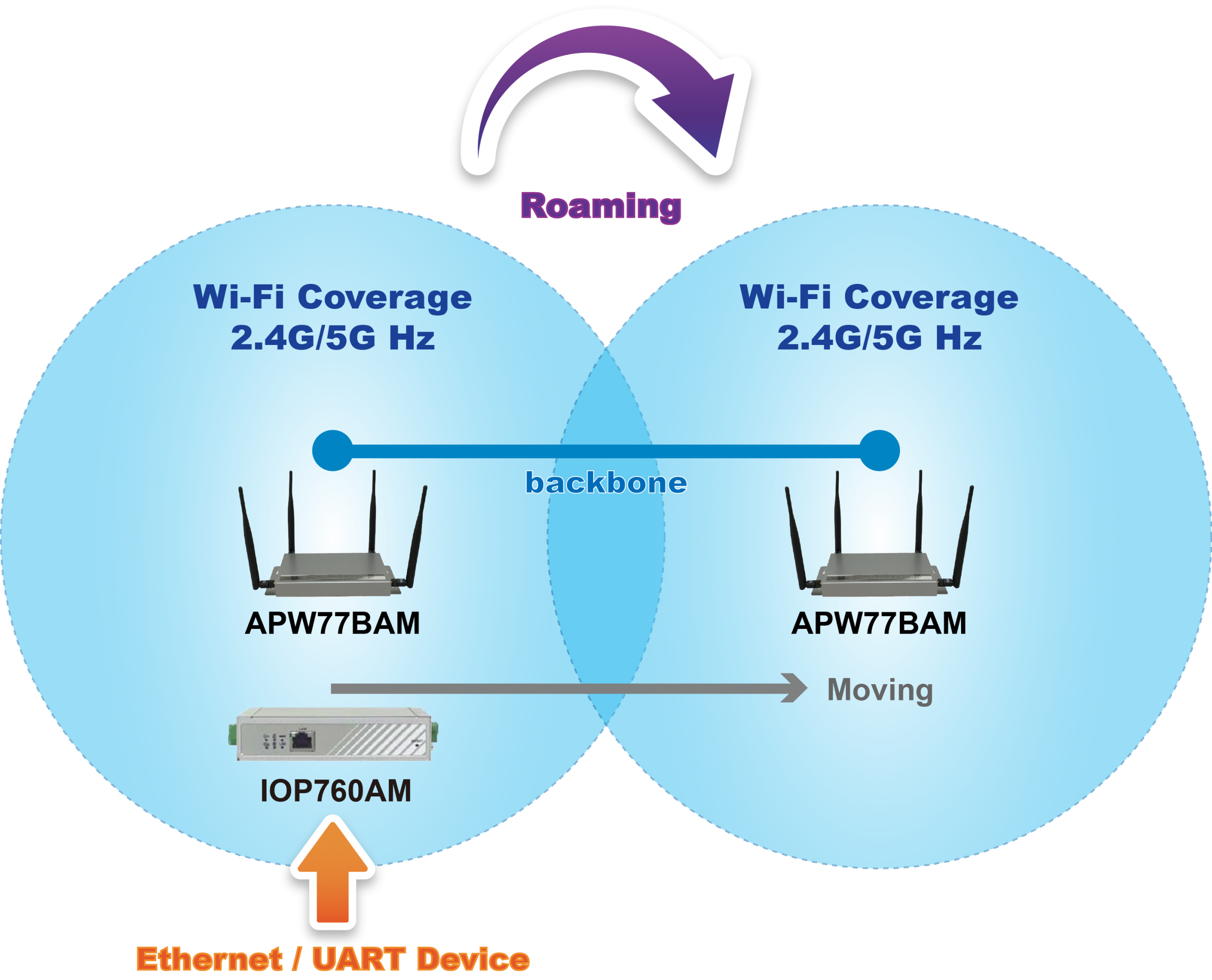

APW77BAM is designed for medium-sized businesses to extend the existing networks and has the ability to operate in different modes and can be used in a wide variety of wireless applications. Its Universal Repeater Mode not only has an easier way for setup, but also provides better performance and compatibility to create a larger wireless network infrastructure by linking up other access points. It also supports Multiple-SSID function to simultaneously emulate 8 APs with different ESSIDs and separate packets via VLAN IDs.

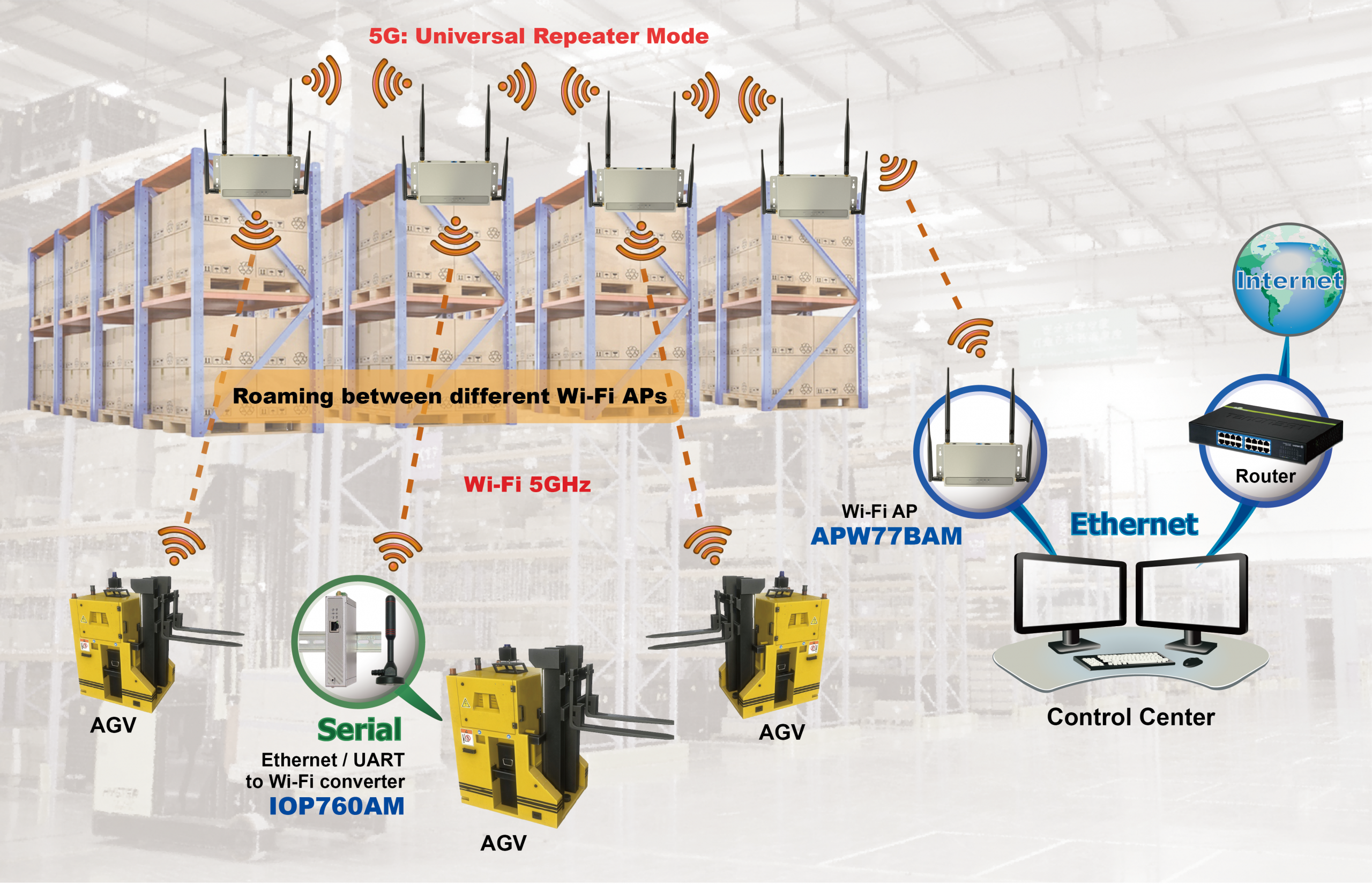

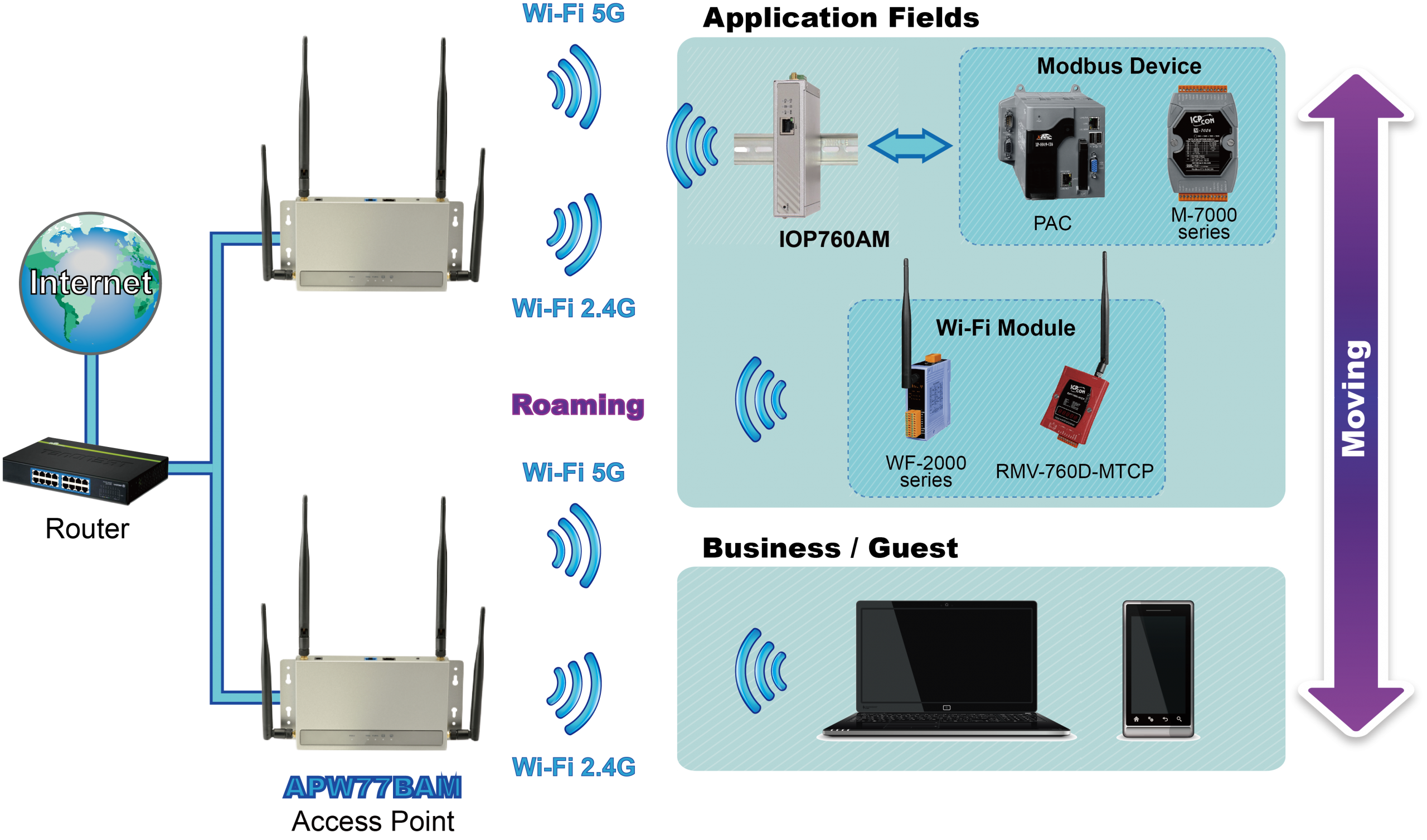

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard | IEEE 802.11a/b/g/n/ac |

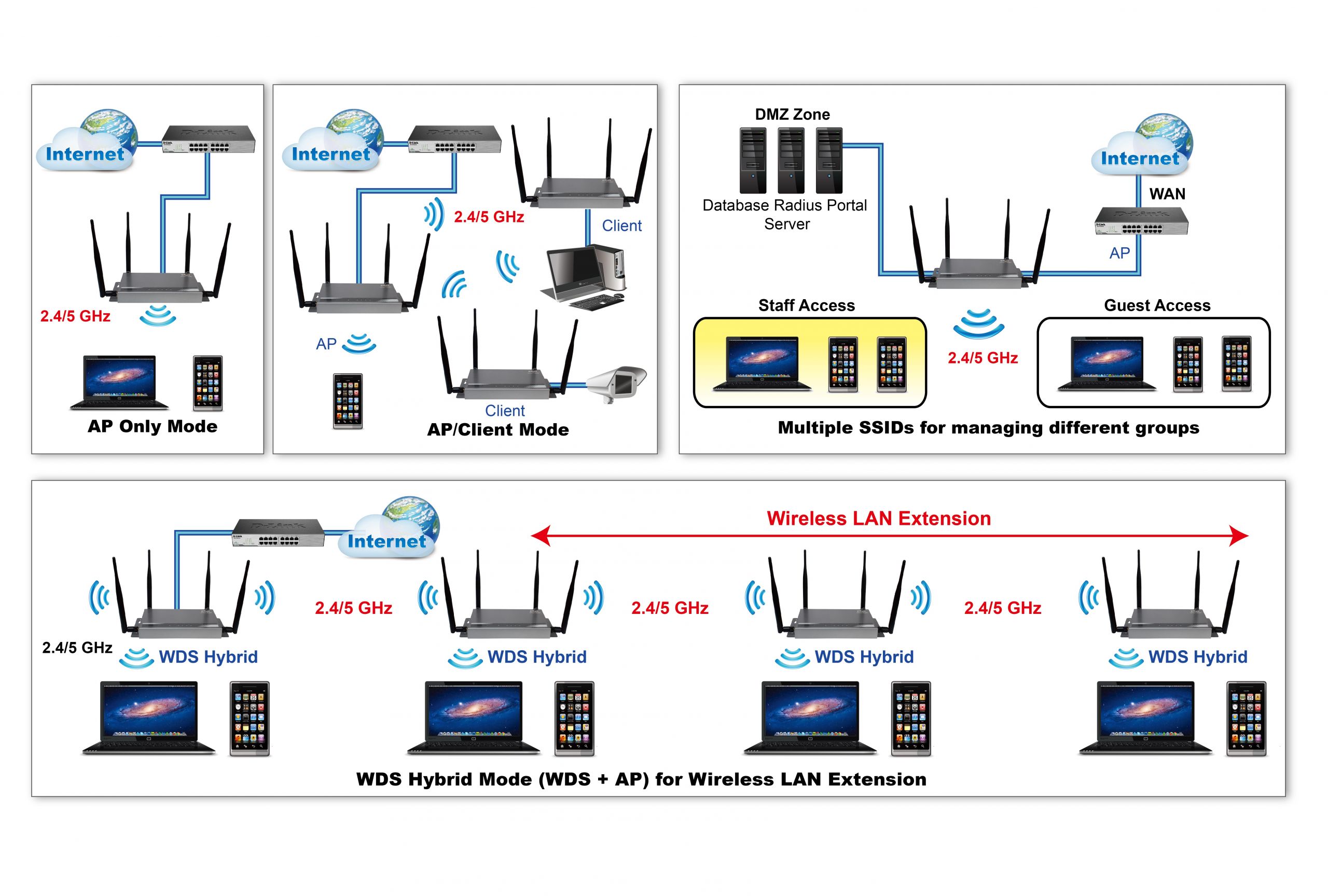

| Mode | Thin AP AP Only/WDS Only/WDS Hybrid/Universal Repeater/Client Modes |
| Encryption | WEP / WPA / WPA2 / WPA-PSK / WPA2-PSK / 802.1x |
| Data Transmission Rate | 2.4 GHz:300 Mbps(MIMO 2T2R) 5 GHz:866 Mbps(MIMO 2T2R) |
| Client | Max. 128 Clients |
| Channels | 2.4 GHz:1~11 5 GHz:36/40/44/48;149/153/157/161/165 |
| Antenna | Omni-Directional 5 dBi @ 2.4 GHz 5 dBi @ 5 GHz |
| Ethernet | |
|---|---|
| Ports | 2 × RJ45 GE |
| PoE | IEEE 802.3af PD |
| Power | |
|---|---|
| Input Range | +12VDC/1A (DC Jack) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 225 x 115 x 25 (W x L x H)(with Mounting kit) |
| Installation | Wall-Mount |
| Environment | |
|---|---|
| Operating Temperature | 0 ℃ ~ 50 ℃ |
| Storage Temperature | -40 ℃ ~ 85 ℃ |
| Humidity | 10% ~ 95% (non-condensing) |
