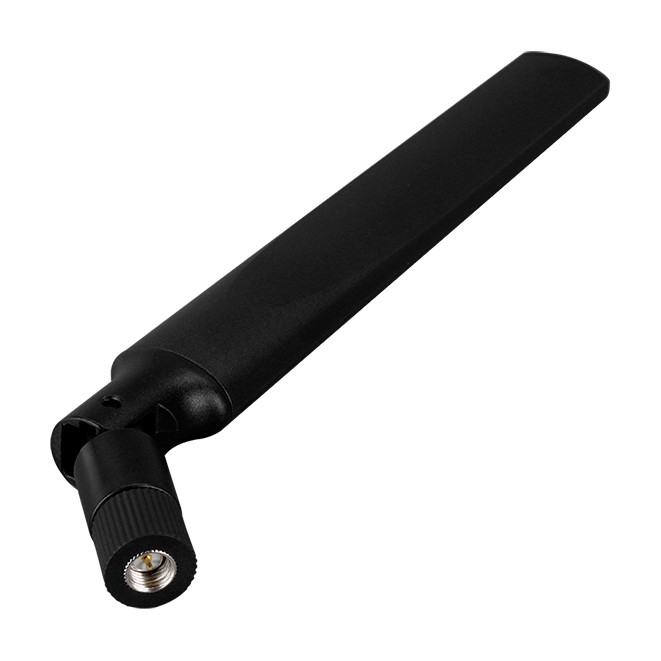

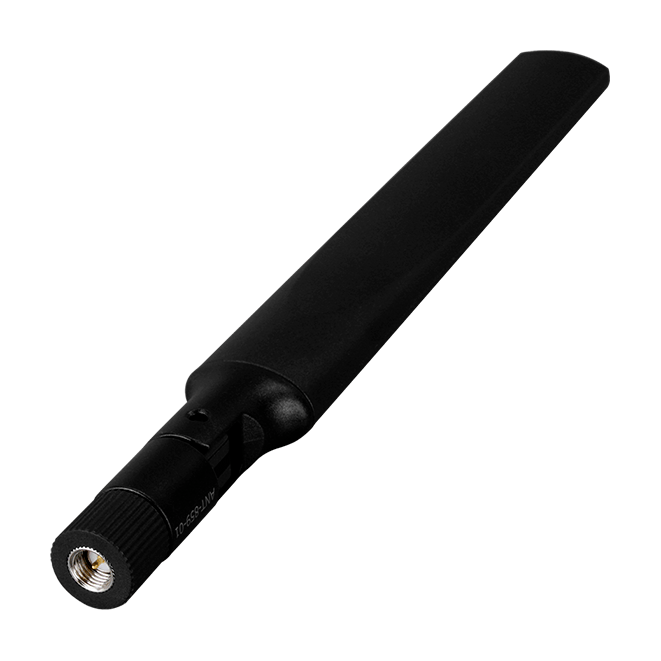

ANT-859-01
4.5 dBi, 5G LTE omni-directional antenna (SMA Male Plug)
Features
- 2G GSM/GPRS Antenna (850/900/1800/1900 MHz)
- 3G WCDMA Antenna (850/1900/2100 MHz)
- 4G LTE Antenna (800/850/900/1800/2100/2600 MHz)
- 5G NR Antanna (n1~n98)
- SMA Male (Plug)
- Omni-Directional
Introduction
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Mechanical | |
|---|---|
| Dimensions (mm) | 183.6 mm x 21.5 mm |
| Weight | 23.8 ± 2 g |
| Environment | |
|---|---|
| Operating Temperature | -40 °C ~ +85 °C |
| Antenna | |
|---|---|
| Type | Dipole |
| Connector | SMA Male (Plug) |
| Gain (dBi) | 1.04 dBi @ 617~798MHz 0.74 dBi @ 803~960MHz 2.31 dBi @ 1166‐1610MHz 3.58 dBi @ 1710‐2200MHz 3.88 dBi @ 2300‐2690MHz 2.26 dBi @ 3300‐3800MHz 4.5 dBi @ 4200‐5000MHz 4.31 dBi @ 5150‐5925MHz |
| Band | 617~798MHz 803~960MHz 1166‐1610MHz 1710‐2200MHz 2300‐2690MHz 3300‐3800MHz 4200‐5000MHz 5150‐5925MHz |
