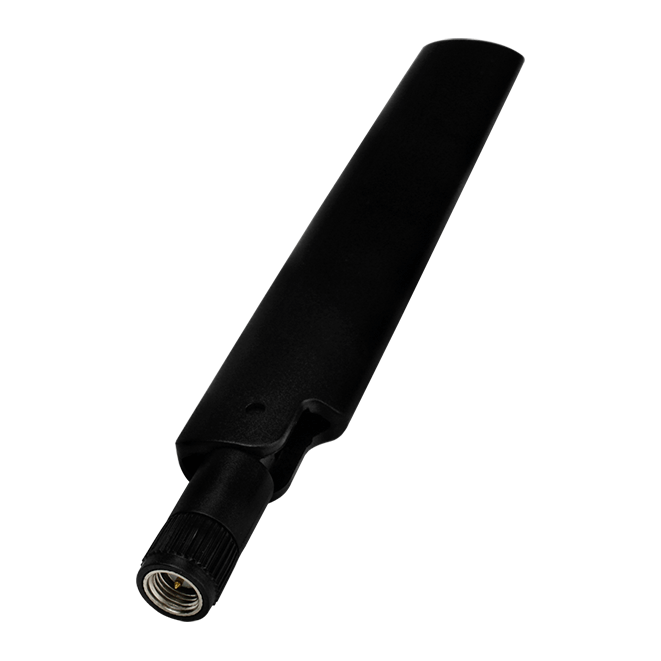

ANT-421-04
2 dBi, 4G LTE omni-directional antenna (SMA Male Plug)
Features
- 2G GSM/GPRS Antenna (850/900/1800/1900 MHz)
- 3G WCDMA Antenna (850/1900/2100 MHz)
- 4G LTE Antenna (800/850/900/1800/2100/2600 MHz)
- SMA Male (Plug)
- Omni-Directional
Introduction
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Mechanical | |
|---|---|

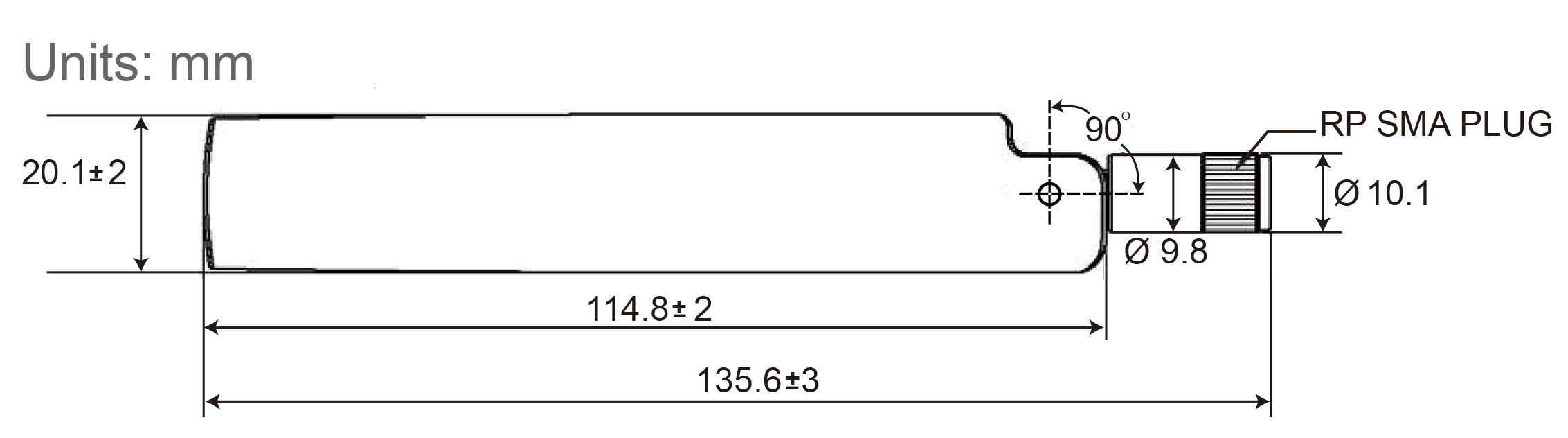

| Dimensions (mm) | 135.6 mm x 20.1 mm |
| Environment | |
|---|---|
| Operating Temperature | -20 ℃ ~ + 65 ℃ |
| Antenna | |
|---|---|
| Type | Dipole |
| Connector | SMA Male (Plug) |
| Gain (dBi) | 1 dBi @ 704~960 MHz 2~2.5 dBi @ 1710~2170 MHz 2.5 dBi @ 2500~2690 MHz |
| Band | 704~960 MHz 1710~2170 MHz 2500-2690 MHz |
