ANT-115-03-2
GPS/Glonass magnetic mount antenna with 5M cable (SMA Male Plug)
Features
- GPS: 1575.42±5 MHz
- Glonass: 1610±8 MHz
- 4.5 dBi
- Magnet mount
- SMA Male (Plug)
Introduction

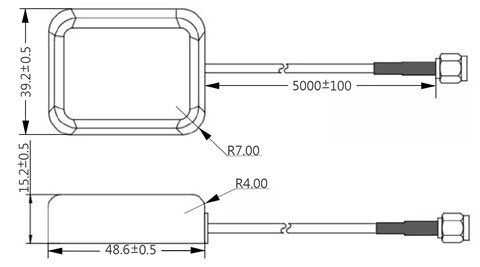

Dimensions (Units: mm)
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Mechanical | |
|---|---|
| Weight | 75 g |
| Environment | |
|---|---|
| Operating Temperature | -40°C ~ +80°C |
| Storage Temperature | -45°C ~ +85°C |
| Antenna | |
|---|---|
| Type | Magnetic mount base |
| Connector | SMA Male (Plug) |
| Gain (dBi) | 4.5 |
| Band | GPS: 1575.42±5MHz Glonass: 1610±8MHz |
