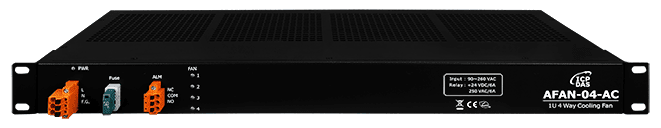

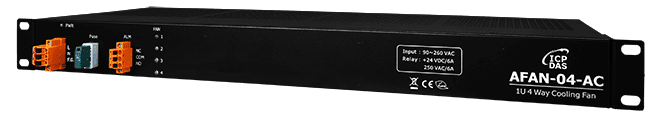

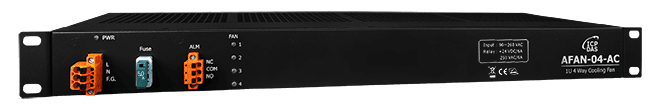

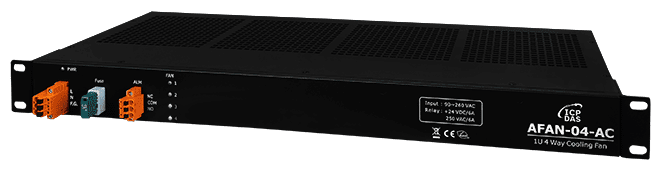

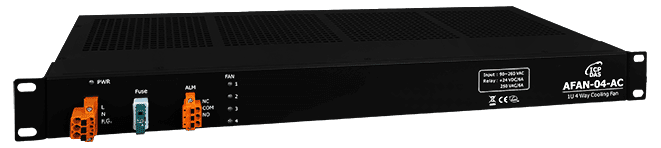

AFAN-04-AC is a 1U general-purpose fan module developed by ICP DAS. It is designed with many advantages for the thermal management of computer room or industrial equipment. The main features are included as below.

1. Fan Modules: Equipped with 4 fan modules and provides active air convection, which effectively reduces the operating temperature of the equipment and improves the stability and safety of the system.
2. Power supply and protection: 110VAC power supply with built-in 5A fuse overvoltage protection to ensure the safety of equipment operation.
3. Monitoring and Alarm: Built-in fan fault indicator and DO Relay alarm output allow users to monitor the fan operation status through the remote monitoring center's DI connector, which helps to detect and handle fan faults in time to avoid system damage due to overheating.
4. Hot-swappable support: Supports hot-swappable replacement of fan modules in case of failure without shutting down the system, which further improves system maintenance efficiency.

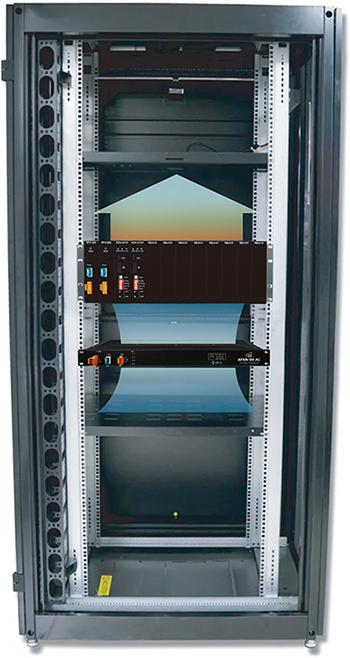

5. Installation Compatibility: Compatible with EIA RS-310-C standard, it can be installed in 19” racks, which is in line with the installation specification of general equipment in the server room.

• Suitable for 1U server cabinet and can be used to RIO-98x0, RPS-8M module
