Introduction:

IoTstar Dashboard Service is an optional software package for use with IoTstar. It provides users a Dashboard editor with a variety of Widget components. Based on the functions the IoTstar Dashboard Service provides, users can setup the Dashboard pages to review the real-time data from the Sensor modules connected to WISE/PMC/PMD controllers, and it can also change the values of the DO/AO output channels of the Sensor modules connected to WISE/PMC/PMD controllers immediately.


Features:

• Provide Dashboard editor for user to edit a specific Dashboard pages flexibly.
• Provide a variety of built-in Widgets to display the sensor data in different formats.
• Display the real-time sensor data and the status of output channels also can be changed.
• Support "Dark Mode" to turn the browser to dark for better visibility during night time.
• Receive on-site snapshots or video files sent by the controller. User can browse and review the snapshots or video files received by IoTstar (For the sending of on-site snapshots or video files, please use WISE with iCAM IP camera).
• Provide Rich Content Widget (WYSIWYG editor), and allow user to edit the content of the Widget by himself (Such as import HTML code, text, Webpage, image, video file, etc.).

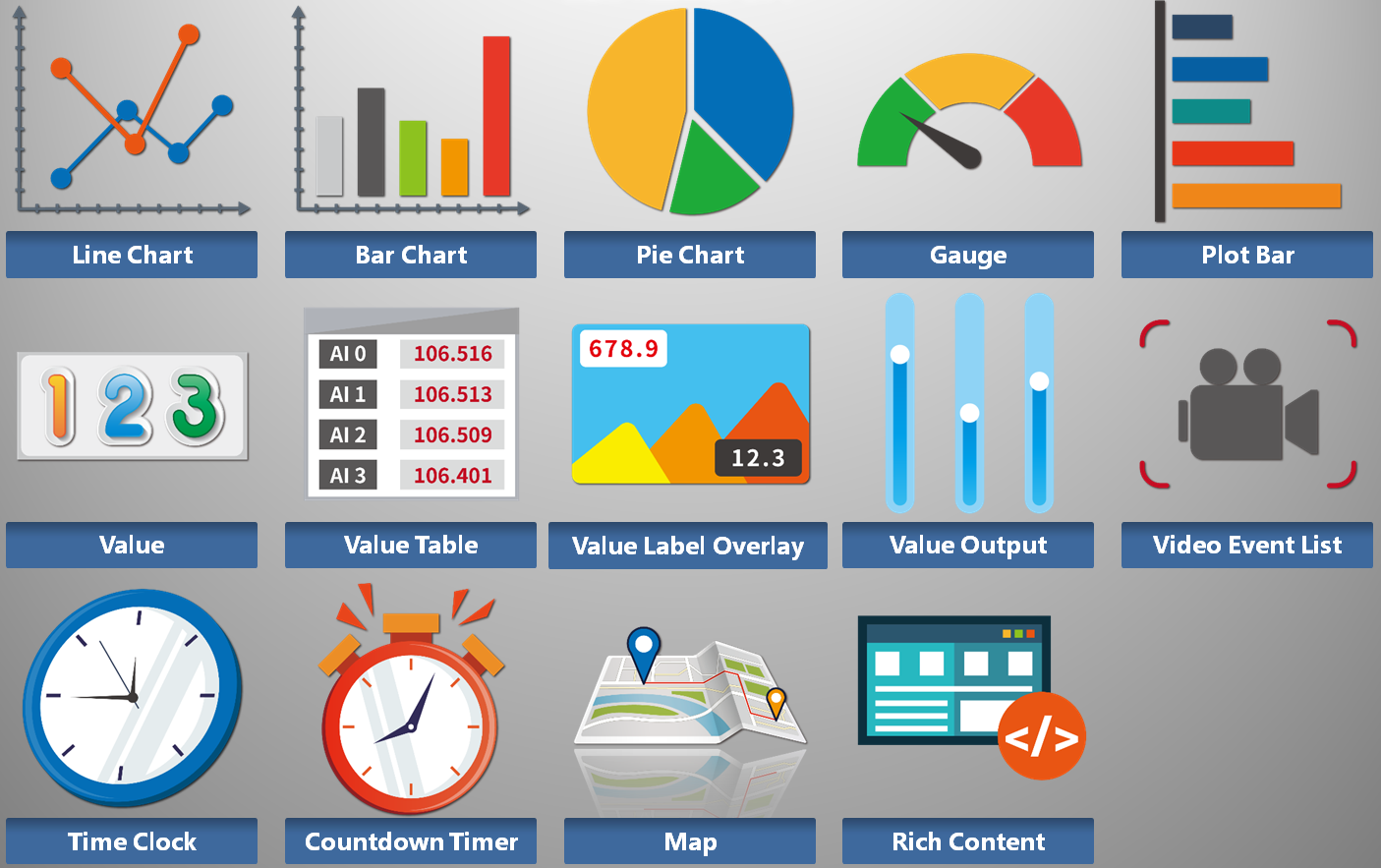

Widget components provided by IoTstar Dashboard Service



Examples of Dashboard page provided by IoTstar Dashboard Service

Example of Air quality monitoring (Using Line Chart, Gauge, Plot Bar, Value Table, Value Label Overlay widgets).



Example of Power monitoring example (Using Line Chart, Value, Value Output and Rich Content widgets).

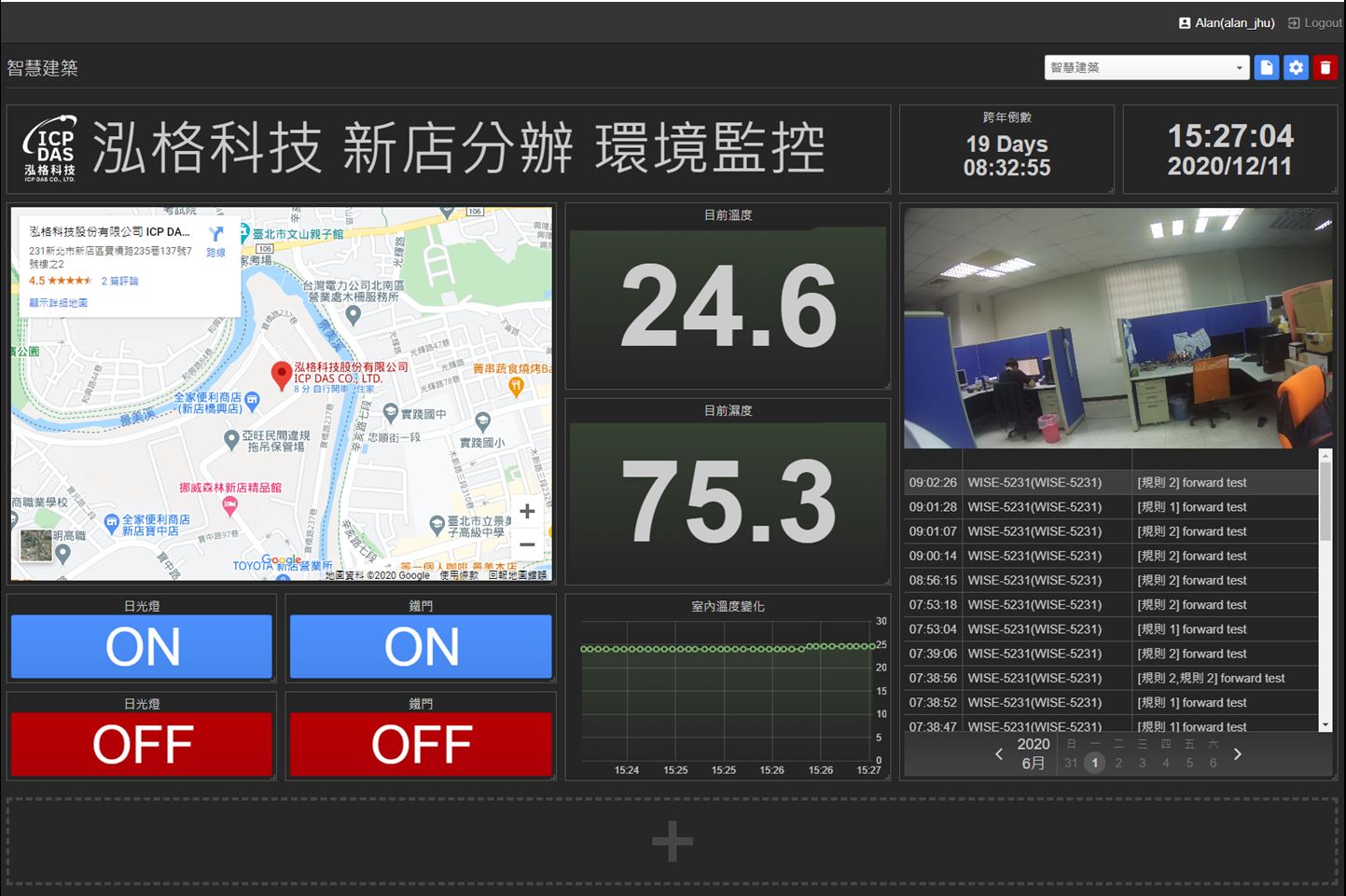

Example of Environmental monitoring (Using Line Chart, Value, Value Output, Map and Video Event List widgets).




Ordering Information
