Introduction:

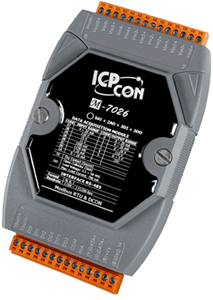

The M-7026 is a multifunction module that includes 6 analog input channels, 2 analog output channels, 3 digital input channels, and 3 digital output channels. It provides a programmable input range on all analog inputs (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ +20 mA and +4 ~ +20 mA), analog outputs are 12-bit at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA and all digital outputs can be set as alarm output. Each analog input can be configured for an individual range and provides a high overvoltage protection of 240 Vrms. Voltage and current inputs/outputs are jumper selectable.



Features:

• Multifunction (6 AI, 2 AO, 3 DI and 3 DO)
• Supports Fast Mode and Normal Mode
• Individual Channel Configuration
• Open Wire Detection for Current Output
• Overload and Short Circuit Protection for Digital Output
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• 240 Vrms Overvoltage Protection for Voltage Input
• Jumper Selectable Voltage or Current Input/Output
• Dual Watchdog
• 4 kV ESD Protection
• Wide Operating Temperature Range: -25 ~ +75°C

Applications:

• Industrial Automation
• Building Automation
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
• Industrial Machinery
