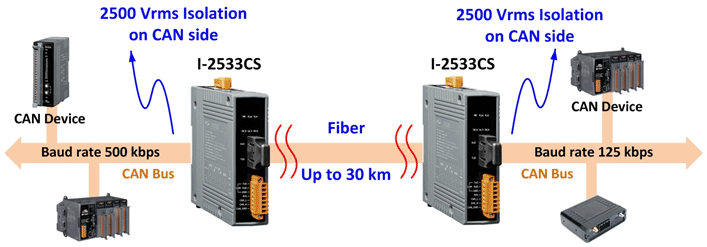

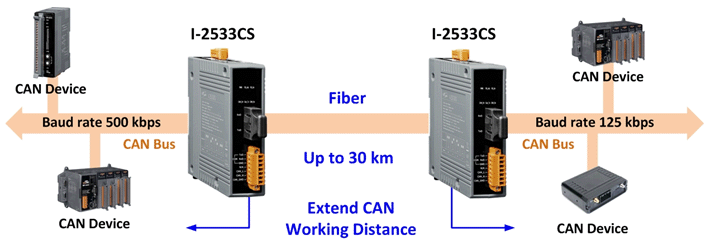

The I-2533CS is a local CAN bridge used to establish a connection between two CAN bus systems via single mode fiber transmission medium. In order to solve the problem between CAN and fiber transmission mediums, the I-2533CS is specially designed for converting the electrical CAN bus signal to the optical signal, and recover the signal to CAN bus by using another I-2533CS. Compare with other CAN/Fiber converters, the I-2533CS has three more important features. First, the transmission distance limitation of the CAN bus system will not be reduced due to higher CAN baud rate. No matter what kind of CAN baud rates you use, the data transmission distance of fiber is up to 30 km. It means that the total network working distance can be extended.




Second, the error on the CAN bus side of the I-2533CS will not affect the normal CAN bus operation on the other side of the fiber optic cable.

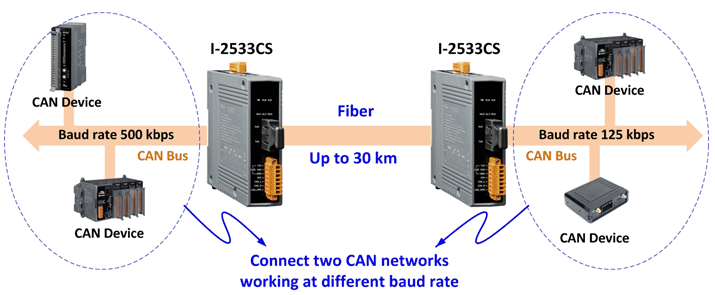

Finally, you can use different baud rate in the CAN networks located at the both ends of the fiber optical cable if necessary.

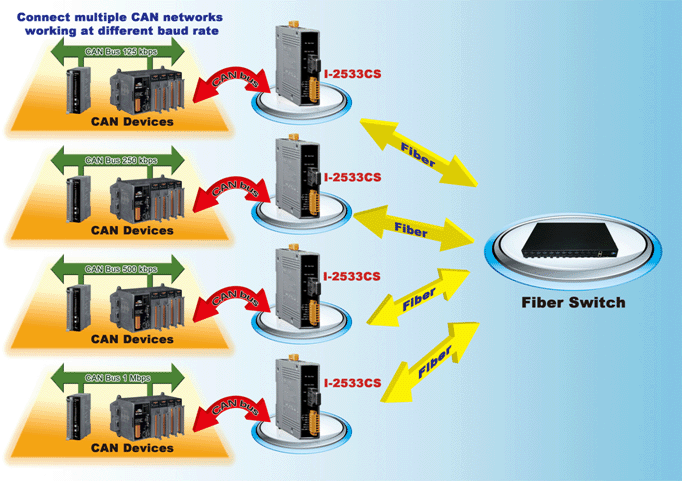

The mainly difference between I-2533 and I-2533CS are fiber connectors and transmission distance. The I-2533CS is designed for single mode fiber, and allow to extern CAN bus to maximum 30 km. Besides, the I-2533CS provides the group function, which is the basic message router. Users can decide the CAN message flows between several CAN bus systems.

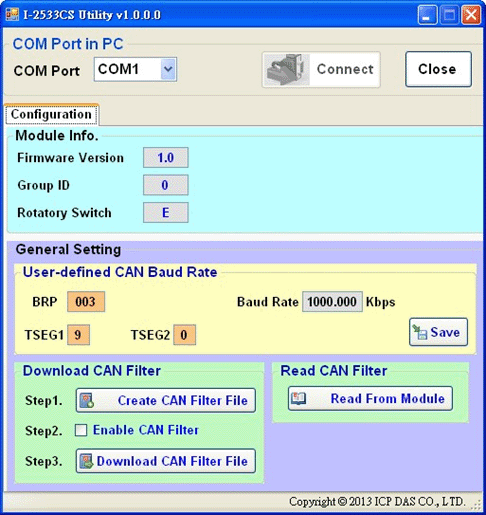

The I-2533CS provides the utility tool for user-defined baud rate and message filter configuration. When users use the I-2533CS on two CAN networks which have different CAN baud rate, it may be useful to reduce the bus loading on the network.





Features:

• Fully compatible with the ISO 11898-2 standard
• Support both CAN 2.0A and CAN 2.0B
• NXP TJA1042 CAN transceiver
• 2500 Vrms isolation on the CAN side
• 3 kV galvanic isolation between the power supply and CAN channel
• Build-in switch to select 120Ω terminal resistor
• Rotary switch for CAN baud rate configuration
• Fiber Type: SC type ; Single mode ; 100 Base-FX
• Wave Length: 1310 nm
• Fiber Cable: 8.3/125, 8.7/125, 9/125 or 10/125 μm
• Transmission distance up to 30 km at any CAN baud rate
• Removable terminal block, Mount easily on DIN-rail
• Allow user-defined CAN baud rate
• Utility tool for CAN message filter configuration
• Support CANopen/DeviceNet/J1939… standard protocols which follows ISO 11898-2 specification.
