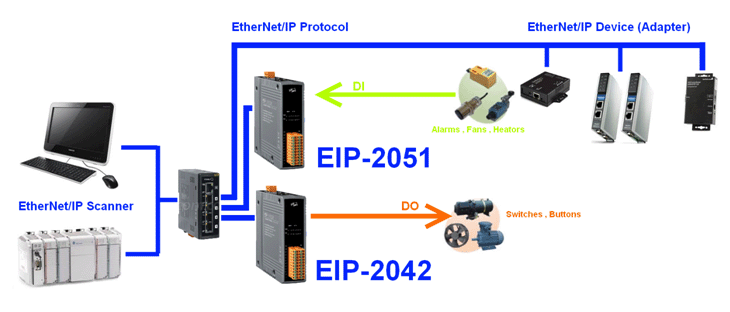

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.

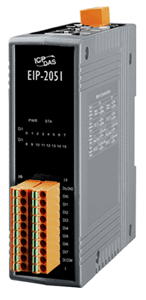

The EIP-2051 is a remote digital input module with 16 inputs. It is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2051 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.




Features:

• Transfer protocol: EtherNet/IP
• 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
• Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
• Easy firmware update via Ethernet
• Removable terminal block connector
• LED indicators to display the I/O status
• Built-in I/O
  • DI: 16 Channels
• DI Counters
• RoHS compliant

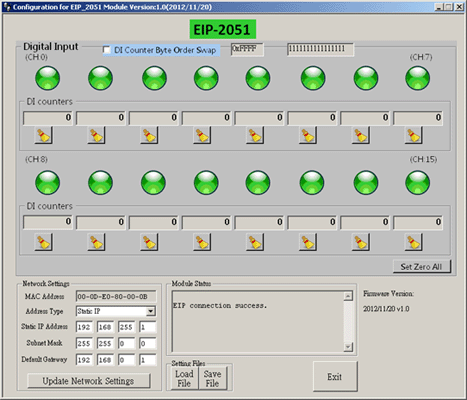

Utility Features:

• Supports Windows 2K/XP/Vista and Win 7
• Network parameters configuration
• Settings for power-on value and safe value
• DI counters inspection
• Easy test to transmit/receive the I/O status by EtherNet/IP
• Setting files management

For more details, please visit：https://www.icpdas.com/en/product/EIP-2051
