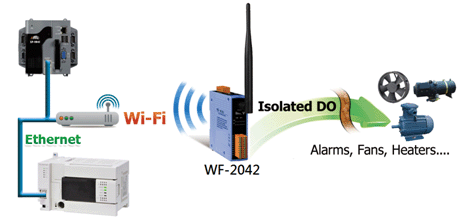

The WF-2042, one member of ICP DAS WF-2000 Wi-Fi product family, is a 16-channel isolated digital output module. WF-2042 in WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2042 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2042 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.





Features:

• Compatible with IEEE 802.11b/g standards
• Support infrastructure and ad hoc modes for wireless networks
• Support sink type digital outputs
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• Support Pair Connection mode
• Wide Operating Temperature Range
• Built-in Watchdog
• 4 kV ESD Protection

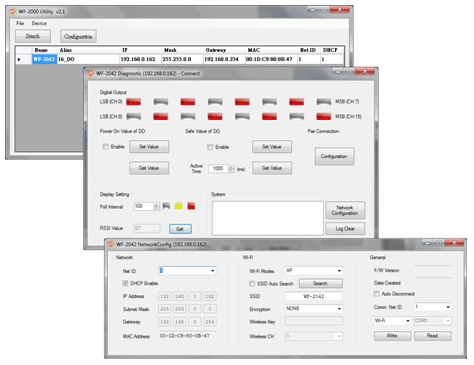

Utility Feature:

• Provide automatic search functionality
• Provide Input and output signals monitor and configuration screen
• Provide wireless encryption configuration

For more information about the product, please refer to the following website:
https://www.icpdas.com/en/product/WF-2042
