Introduction:

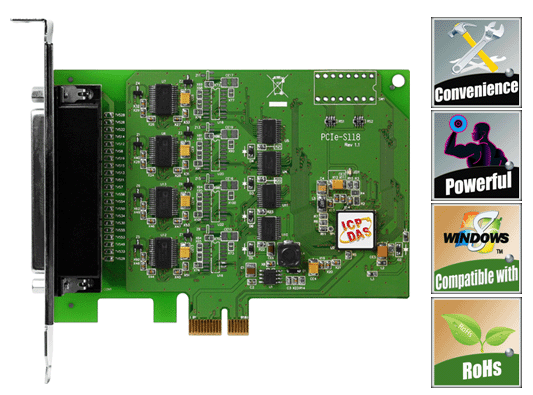

The PCIe-S118 communication card provides 8 RS-232 serial ports. Each port is equipped with a 256-byte hardware FIFO, and offers speed up to 921600 bps. The PCIe-S118 card supports driver that can choose COM port numbers automatically.

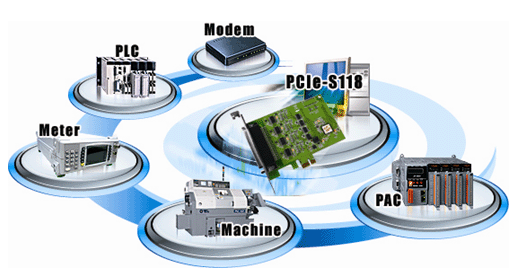

The serial communication card is designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port.



Hardware FIFO up to 256 bytes

FIFO stands for "First In, First Out", an abstraction in ways of organizing and manipulating data relative to time and prioritization. FIFO is used for buffering and flow control while data come from hardware to software. When using hardware FIFO (buffer), a little delay on software or operating system will not lost data at all.


PCIe-S118 card is equipped with 256-byte hardware FIFO for each port. Large hardware FIFO is useful to prevent data lost when your system works on heavy loading system, e.g. running on a multi-task operating system such as Windows, Linux… etc.




Features:
	Supports PCI Express Automatically select COM port numbers Short Card Design
	256-byte hardware FIFO for each port
	Supports Microsoft Windows 8 32-/64-bit version OS Support Windows XP/2003/2008/Vista/7 32-/64-bit version OS
	RoHs compliant & no Halogen

For more information, please visit the PCIe-S118 web site.
