Introduction:

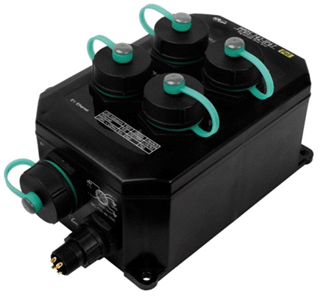

The PPDS-742-IP67 is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PPDS-742-IP67 into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PPDS-742-IP67 is able to meet the demands of every network-enabled application.

The PPDS-742-IP67 includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PPDS-742-IP67 up in just one second and gives you fastest responses.

The PPDS-742-IP67 is a special design for the toughest applications. It can be directly mounted to any machine or convenient flat surface. The rugged packaging and IP67 connectors are rated to protect against water, oil, dust, vibration, and much more.

The PPDS-742-IP67 supports PoE (Power over Ethernet) function that allows power and data to be carried over a single Ethernet cable, so a device can operate solely from the power it receives through the data cable. This innovation allows greater flexibility in office design, higher efficiency in systems design, and faster turnaround time in set-up and implementation. When there is no PoE switch on site, the PPDS-742-IP67 accepts power input from a +12 VDC to +48 VDC adapter.

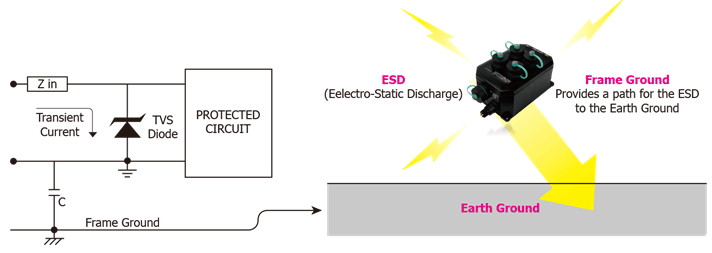

“ESD Protection” & “Frame Ground”:
The PPDS-742-IP67 offers TVS diode ESD protection technology, protecting your system from being damaged by the unexpected high voltage.




How does TVS diode work?
Under normal operating conditions, the TVS diode presents high impedance (appears as an open circuit) to the protected component. When the voltage is beyond the limits, the TVS diode avalanches will provide a low impedance path for the transient current. As a result, the transient current is diverted away from the protected components and shunted through the TVS diode. The device returns to a high impedance state after the transient threat passes.




Features:
	Incorporate Serial Devices in an Ethernet network 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
	VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7/8/10
	Powerful Programmable Device Server Low power consumption Built-in High Performance MiniOS7 from ICP DAS
	Power Reverse Polarity Protection Serial Port +/-4 kV ESD Protection Circuit Plastic Casing with IP67 Waterproof Rugged RJ-45 Connector for anti-vibration and shock Watchdog Timer suitable for use in harsh environments
	Self-Tuner ASIC Controller on the RS-485 Port Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC adapter
	RoHs compliant & no Halogen ODM Service Is Available

For more information, please visit the PPDS-742-IP67 web site.
