SmartRF Protocol Packet Sniffer


Introduction:

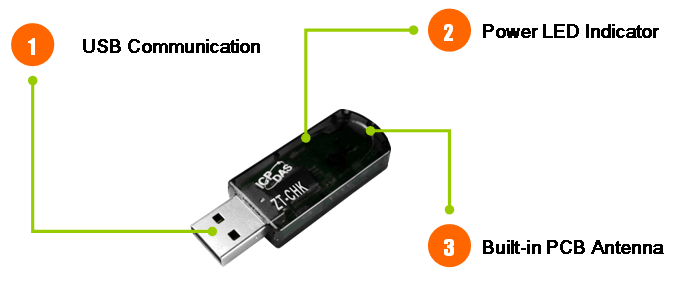

The ZT-CHK module is a wireless sniffer to capture and analyze over-the-air data packets of IEEE 802.15.4 standard in real-time with TI SmartRF Protocol Packet Sniffer (SPPS) software. It is easy to install the ZT-CHK to PC by USB interface. With SPPS software, users can view or store the wireless data packets on PC and these data packets are like ZigBee 2007(ZigBee Pro). Moreover, that can be a good way for users to analyze the IEEE 802.15.4 data in their applications, and reduce the wireless communication testing time efficiently.

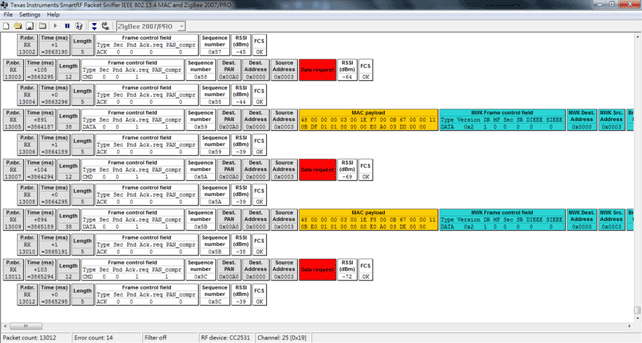

SmartRF Protocol Packet Sniffer can be downloaded at the website (http://www.ti.com/tool/packet-sniffer). When users install the SmartRF Protocol Packet Sniffer, the driver of ZT-CHK will also be installed.

For more information, please refer to the relevant website for these devices, which can be found at the following link:
https://www.icpdas.com/en/product/guide+Wireless__Communication+ZigBee+Converter#859



Features:

• Can capture over-the-air data packets of IEEE 802.15.4 standard
• No External Antenna required
• Wireless Receiving Range up to 60 meters (Line of Sight)
• Fully Compliant with the USB 1.1/2.0 (High Speed)
• No External Power Supply required
• Operating Temperatures, -25 °C ~ +75 °C
