Introduction:

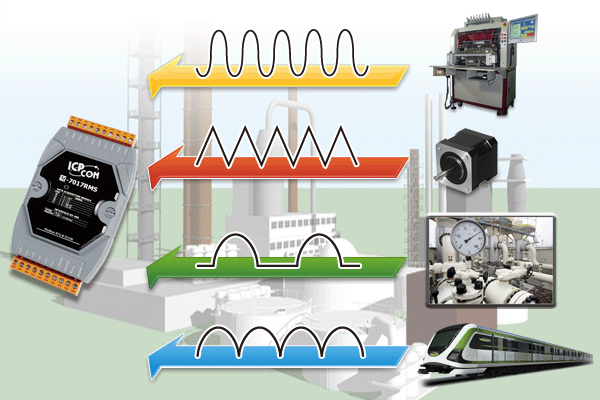

The M-7017RMS is an 8-channel differential AC input module that is used to convert the AC input signals to their true RMS DC values. The RMS input range can be from +150 mVrms to +10 Vrms, and each channel can be configured individually. The M-7017RMS is a complete, high-accuracy, RMS-to-DC converter that computes the true RMS DC value of any complex waveform. It also features 4 kV ESD protection, 2500 VDC intra-module isolation and +/-35 VDC overvoltage protection.




Features:

• 8-channel True RMS Input
• ±0.15% Factory Calibrated Accuracy
• The RMS input range can be from +150 mVrms to +10 Vrms
• Designed for Standard Operation with Frequencies of 45 Hz to 10 KHz
• Individual Channel Configurable
• 4 kV ESD Protection
• ±35 VDC Overvoltage Protection
• 2500 VDC Intra-module Isolation
• RoHS Compliant
• Wide Operating Temperature Range: -25 to +75°C

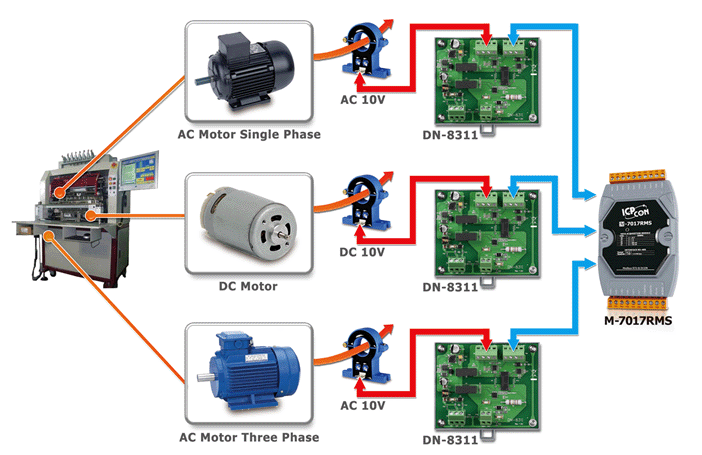

Applications:

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
