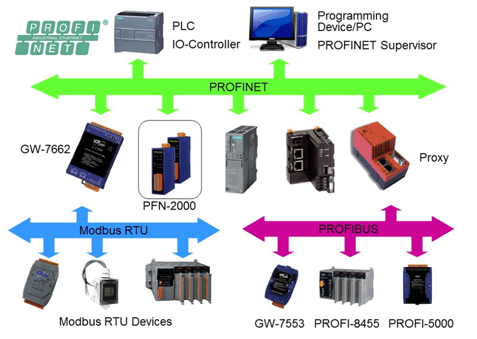

PROFINET is an open Industrial Ethernet standard developed by the PROFIBUS Organization (PI). Based on the versatility of Ethernet, PROFINET makes vertical integration of field level to Enterprise level easy. PROFINET has good performance in real-time and stability for communication, so it can cover all requirements of the Automation Industry. PROFINET is perfect for factory automation, process automation, safety applications and motion control applications, etc.

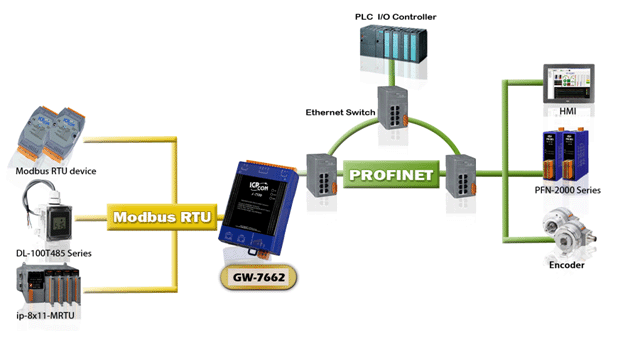

The GW-7662 is specially designed for PROFINET IO device. It allows PROFINET controller to access Modbus devices. These Modbus devices may be a PLC, a sensor, ICPDAS M-7000 series modules and so forth. We also provide the utility software for users to configure GW-7662. By applying the GW-7662, users can integrate their Modbus devices into PROFINET network easily.




Features:

• Protocol: PROFINET IO Device
• Supported Ethernet services: ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
• Supported PROFINET services: RTC, RTA, CL-RPC, DCP, LLDP, I&M
• PROFINET Conformance Class B and RT Class 1
• Cyclic Time: 1ms (min)
• Generic GSDML File Provided
• Max. Input/Output data :512/512 bytes
• Support Modbus Master and Slave mode
• Support Modbus RTU and ASCII format
• Support several kinds of baud rate for COM1 from 1.2 to 460.8 kbps
• Built-in self-tuner ASIC controller on RS-422/485 port
• Integrated 2-Port Switch
• Automatic MDI / MDI-X Crossover for Plug-and-play
• Provide LED indicators
• Robust, fan less design
• 4 kV Contact ESD protection for any terminal
• Wide range of power input (+10 to +30 VDC) and operating temperature (-25 to +75°C)

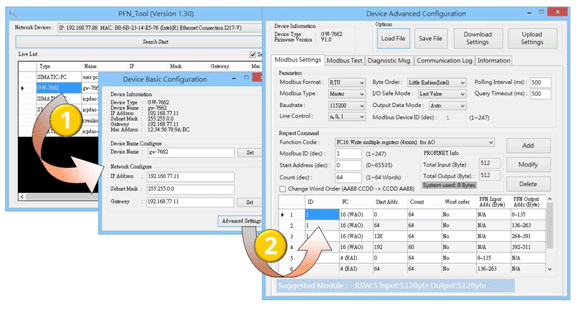

Utility:

• Provide device search function
• Show firmware version
• Support network parameters configuration
• Provide Modbus device setting
• Show diagnostic messages of the GW-7662
• Provide Modbus test function
• Provide Communication Log of Modbus network



PROFINET Converter & Gateway Products Comparison Table
