Introduction:

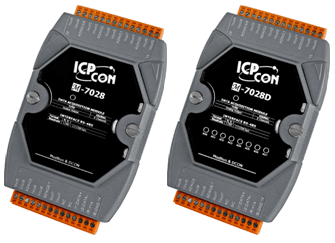

The M-7028 is a 12-bit, 8-channel analog output module. It provides a programmable output range on all analog output channels (0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, +4 ~ +20 mA or 0 ~ +20 mA). Each analog output channel can be configured for an individual range and the module also features per-channel open wire detection for the +4 ~ +20 mA output, together with 8 kV ESD Protection as well as 3000 VDC intra-module isolation. Options for configuring power-on and safe values are also included.



Features:

• 8-channel Analog Output
• Source Type Current Output
• 12-bit Analog Output
• Individual Channel Configuration
• Open Wire Detection for Current Output
• RF Immunity
• 8 kV ESD Protection
• Power-on Value Setting
• Safe Value Setting
• Wide Operating Temperature Range: -25 to +75°C

Applications:

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

For more information, please visit the following website:
https://www.icpdas.com/en/product/M-7028-G
https://www.icpdas.com/en/product/M-7028D-G
