Introduction:

The VP-4201-CE7 is WINCE7 based ViewPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an ARM AM3354 CPU, TFT LCD and a variety of connectives including a Gigabit Ethernet, USB port, RS-232 and RS-485 interface. I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. Designed to operate over a wide -10°C ~ 60°C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts.



Features:

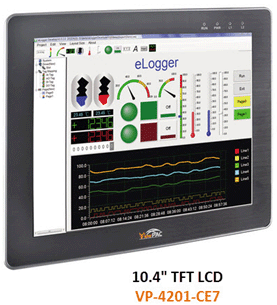

• 10.4" TFT LCD
• AM3354, 1G Hz CPU
• CE7 (Windows Embedded Compact 7)
• Hard Real-Time Capability
• Support eLogger HMI (free)
• PoE (Power over Ethernet)
• NEMA 4/IP65 Compliant Front Panel
• Ultra-Rugged Construction and Reliable Design
• Operating Temperature: -10 °C ~ +60 °C

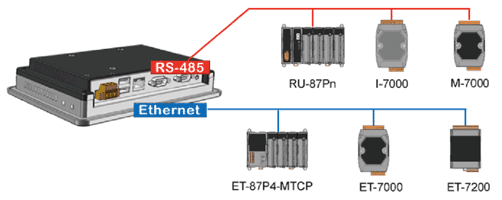

I/O expansion:

More information https://www.icpdas.com/en/product/VP-4201-CE7
