Introduction:

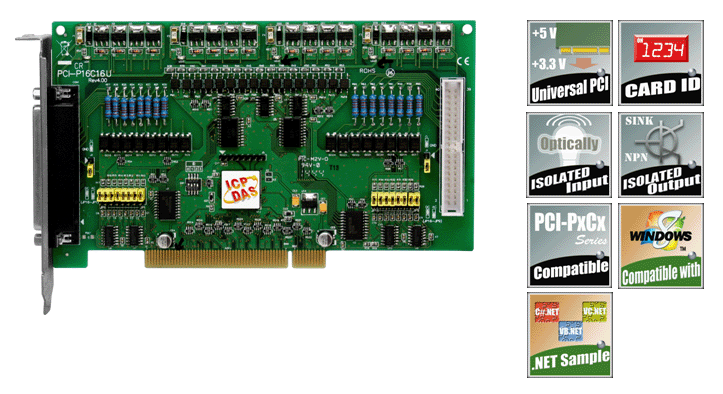

The PCI-P16C16U card is the new generation product that ICP DAS provides to meet RoHS compliance requirement and is designed as completely compatible with the PCI-P16C16U. Users can replace the PCI-P16C16 by the PCI-P16C16U directly without software/driver modification.

The PCI-P16C16U universal PCI card supports 3.3 V/5 V PCI bus and provide 16 optically isolated Digital Input channels and 16 open collector (Sink, NPN) Digital Output channels. The DI channels provide 5000 Vrms isolation protection that allows the input signals to be completely floated so as to prevent ground loops and isolate the host computer from damaging voltages. The open collector output (DO) channels are typically used for alarm and warning notification, control of signal output, control of external circuits that require a higher voltage level, and signal transmission applications, etc.

The PCI-P16C16U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more cards in one computer.

These cards support various OS versions, such as Linux, DOS, 32/64-bit Windows 8/7/2008/2003/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.



Feature:
	Universal PCI interface, supports both +5 V and +3.3 V PCI bus.
	Card ID function, users can set Card ID to recognize sequence of card when users use two or more same model I/O cards.
	16 optically isolated digital input channels 16 open collector digital output channels (Sink, NPN) 5000 Vrms isolation protection Selectable DC signal input filter AC Signal input with filter
	Compatible with software of PCI-P16C16 Series Fully compatible with the PCI-P16C16 product
	Support .NET program Provide Microsoft Visual C#.NET 2005 sample programs Provide Microsoft Visual Basic.NET 2005 sample programs Provide Turbo C++, Borland C++, Microsoft C++ sample programs Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs
	Support32/64-bit Windows 8 Support 32/64-bit Windows XP/2003/7/2008

For more information, please visit the PCI-P16C16U web site.
