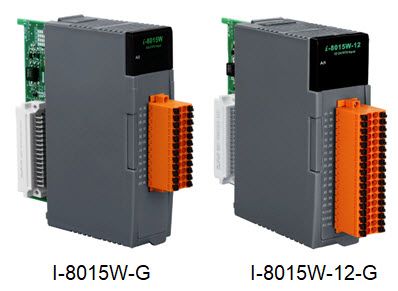

I-8015W-G、I-8015W-12-G: 8- and 12-Channel High Speed RTD Input Modules
New Products
2026-09-18
Introduction：
The I-8015W and I-8015W-12 are 8- and 12-channel RTD input modules, respectively. Each channel supports a high-speed sampling rate of 85Hz and can be connected to a different type of RTD sensor. The modules feature lead resistance compensation for 3-wire RTDs to ensure accurate measurements and provide open-wire detection for RTD measurements.
Features：
- 8 or 12 RTD input channels
- 3-wire RTD lead resistance compensation
- 85 Hz high-speed sampling rate per channel
- Modbus RTU protocol
- 921 kbps UART communication
- Individual channel configuration
- RTD open-wire detection
- COM port driver support for PACs running Windows 10 IoT, WES7, WinCE 6.0, WinCE 7.0 or Linux
Comparison Chart
| Model | Analog Input | |||||
|---|---|---|---|---|---|---|
| Channel | Resolution | Sampling Rate | Voltage Input | Current Input | Sensor Input | |
| I-815W-G (New) | 8 | 16-bit | 85Hz (Per Channel) | - | - | 2/3-Wire RTD (Pt100, Ni120, Cu50, Cu100) |
| I-8015W-12-G (New) | 12 | |||||
| I-87015W-G | 7 | 12Hz | 2/3-Wire RTD (Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000) |
|||
