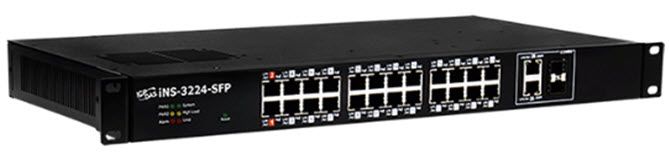

iNS-3224-SFP: 24-port 10/100 Mbps PoE (PSE) IoT Switch with 2 Gigabit SFP Combo Ports
New Products
2026-07-20
Introduction
Features
Similar Products
For more information, please visit:
https://www.icpdas.com/en/product/iNS-3224-SFP
The iNS-3224-SFP is a 24-Port IoT Switch featuring 24 Fast Ethernet ports and two Gigabit SFP/RJ45 combo ports. It supports auto-negotiation, flow control and Auto MDI/MDI-X. Each PoE port delivers up to 30 W of power and features an independent PoE status LED for quick and easy power status monitoring.
The built-in web-based user interface enables users to remotely monitor connection status and manage PoE power for each port.
It also supports power scheduling, allowing PoE power to be automatically turned off during specified time periods to reduce energy consumption.
The built-in web-based user interface enables users to remotely monitor connection status and manage PoE power for each port.
It also supports power scheduling, allowing PoE power to be automatically turned off during specified time periods to reduce energy consumption.
Features
- Two 100/1000 Mbps SFP /RJ45 combo ports for easy and flexible network expansion.
- 24 IEEE 802.3af/at-compliant PoE (PSE) ports
- Up to 30 W output per PoE port
- LAN Bypass on Ports 1 and 2 maintains network communication during power failure.
- Remote PoE power management and scheduling
- Built-in web-based management interface
- Supports SNMP v2c
- Supports Modbus
- 1U rackmount design
Similar Products
| Module | iNS-3224-SFP (New) | iNS-316 | iNS-308 |
|---|---|---|---|
| Port | 24 x 10/100 Mbps 2 x 100/1000 Mbps copper/SFP Combo |
16 x 10/100 Mbps | 8 x 10/100 Mbps |
| PoE | 24 x IEEE802.3at | 16 x IEEE802.3at | 8 x IEEE802.3at |
| Power Input Range | 48~57 VDC | 24~57 VDC | |
| Web GUI | Yes, PoE Monitoring, Power management & Schedule, Link Status, SNMP_v2c, Modbus |
||
| Dimensions (WxHxD) | 483 x 44 x 243 mm | 44 x 179 x140 mm | 42 x 164 x120 mm |
