Introduction:

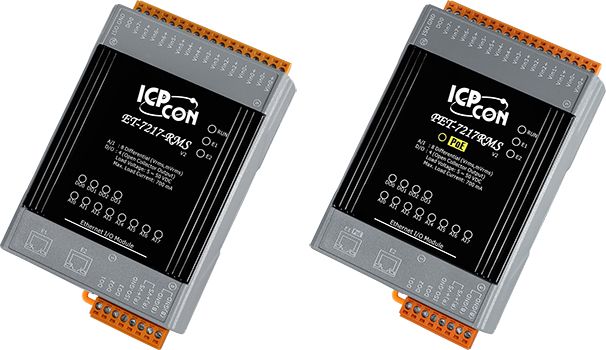

The ET-7217RMS/PET-7217RMS is a high accuracy and RMS-to-DC converter which can compute the true RMS value of any complex waveform. The ET-7217RMS/PET-7217RMS is a multifunction module with 8 differential AC Input channels and 4 Digital Output channels. The RMS input range can be selected for each channel from +150 mVrms to +10 Vrms, and each channel can be configured individually.

Both modules can be remotely controlled using the Modbus TCP/UDP protocol via an Ethernet network. This makes the ET-7217RMS and PET-7217RMS to be well integrated with HMI, SCADA, PLC and other industrial control software systems.



Features:

• Embedded web server for easy configuration and commissioning using a web browser
• Communication Security
• Support for both Modbus TCP and Modbus UDP Protocols
• Built-in I/O
  • True RMS Input: 8 Channels
  • Digital Output: 4 Channels
• I/O Pair Connection
• 2-port Ethernet Switch for Daisy-Chain Topology
• Dual Watchdog

For more information, please refer to the product websites: https://www.icpdas.com/en/product/ET-7217RMS

For more relative products information, please visit the Selection Guide website.
