NS-216, NSM-216
Product Change Notification
2022-01-14
Issued date: 2022/Jan/12
Issued model: NS-216, NSM-216
Product web page:
https://www.icpdas.com/en/product/NS-216
https://www.icpdas.com/en/product/NSM-216
Effective date: 2022/Jan
Change Type:
Hardware: Specifications, Outlook, Dimensions, Accessories
Software: None
Description:
Design changes for main part EOL, NSM-216 outlook modified, new design supports multi type wall mounting.
NS-216
| Original Design | New Design | |
|---|---|---|
| Specifications | Frame Buffer: 2 Mbit MAC Table: 8K |
Frame Buffer: 4 Mbit MAC Table: 16K |
NSM-216
| Original Design | New Design | |
|---|---|---|
| Specifications | Frame Buffer: 3 Mbit MAC Table: 8K |
Frame Buffer: 4 Mbit MAC Table: 16K |
| Dimensions | 44 mm x 170 mm x 129 mm | 44 mm x 154 mm x 119 mm |

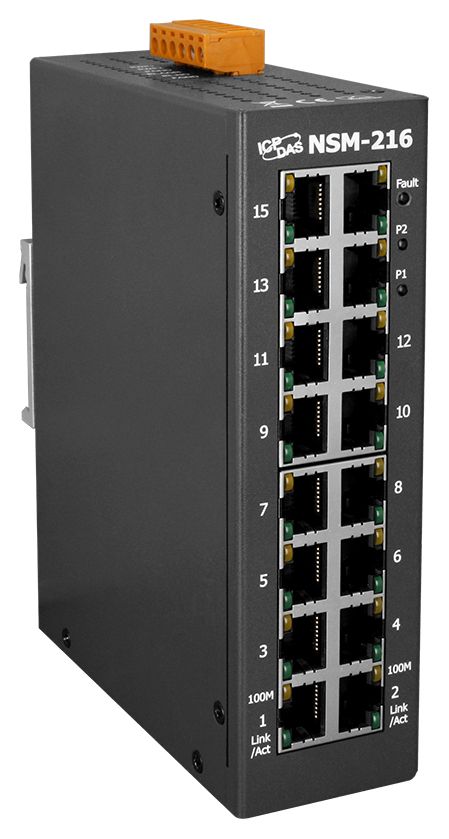

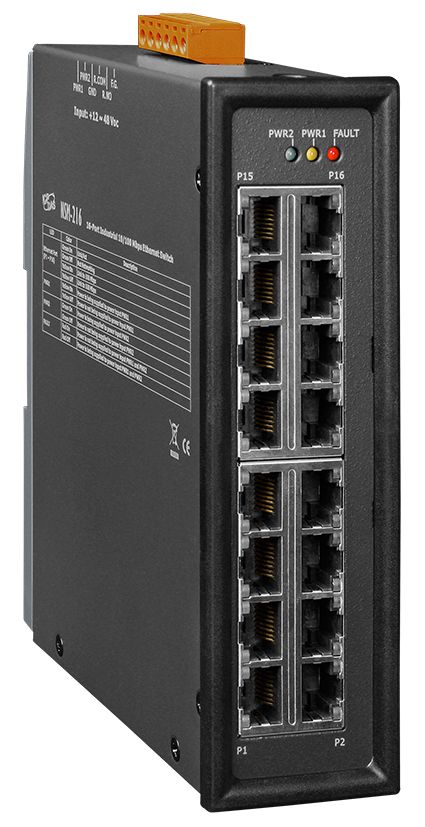

| Outlook |  |
 |
| Accessories |  |
No longer available in Box modified to optional accessories |

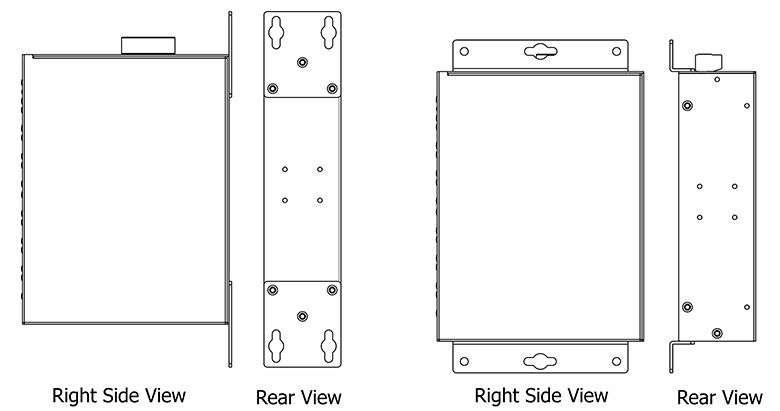

NSM-216 New design supports multi type Wall mounting (optional accessories)
