I-7565M-HS – High Speed USB to 2-port CAN bus Converter

New Products 2018-11-12

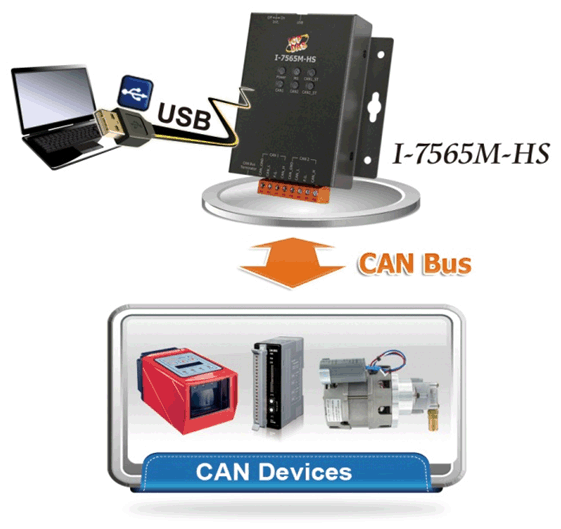

I-7565M-HS is a high speed USB to CAN converter with two CAN channels. It provides faster CAN bus communication performance than I-7565 and it supports CAN2.0A/2.0B protocol and different baud rates from 5 kbps to 1000 kbps. The important feature of I-7565M-HS is to support the user-defined baud rate function no matter what the baud rate is. When connecting I-7565M-HS to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN bus network easier and quicker by applying I-7565M-HS. The application fields can be CAN bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation.

Features:

Compatible with USB 2.0 (High Speed)
Compatible with the ISO 11898-2 standard
Support both CAN2.0A and CAN2.0B specifications
No external power supply (powered by USB)
Programmable CAN Bus baud rate from 10kbps to 1000kbps
Support CAN Bus message filter configuration
Timestamp of CAN message with at least ±10us precision
Watchdog inside
Provide PWR, CAN Tx/Rx and CAN status indication LEDs
Built-in dip-switch to select 120 ohm terminal resister for CAN Bus
Support firmware update via USB
Provide utility tool for users module setting and CAN Bus communication testing conveniently
Provide API library for user program development

USB to CAN Bus Converters Comparison Table:

	I-7565M-HS	I-7565-H2	I-7565-H1	I-7565
CAN Interface
CAN Connector	Screwed terminal block	Screwed terminal block	9-pin male D-Sub	9-pin male D-Sub
Channel number	2	2	1	1
Baud Rate (bps)	10k ~ 1M bps and user-defined	5k ~ 1M bps and user-defined	5k ~ 1M bps and user-defined	10k ~ 1M bps
CAN Filter	Yes	Yes	Yes	Yes
CAN FIFO	512 frames	128 frames (for each CAN port)	256 frames	1000 frames
Max FPS (@1Mbps)	15000	3000 (Total CAN ports)	3000	279 to 360
USB Interface
USB Type	USB Type B	USB Type B	USB Type B	USB Type B
USB Speed	480Mbps	12Mbps	12Mbps	110 ~ 921600 bps
Specification	USB 2.0 (High Speed)	USB 1.1 and USB 2.0 (Full Speed)	USB 1.1 and USB 2.0 (Full Speed)	USB 1.1 and USB 2.0 (Full Speed)
USB FIFO	512 frames	100 frames	100 frames	900 frames
Misc.
Casing	Metal	Plastic	Plastic	Plastic

For more information, please visit the following website:
https://www.icpdas.com/en/product/I-7565M-HS
