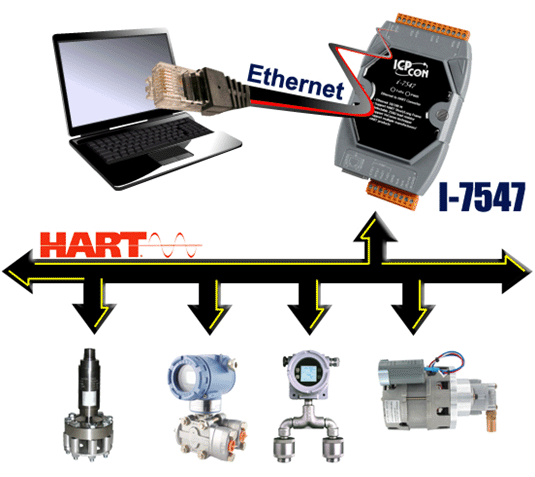

I-7547 is an Ethernet to HART converter specially designed as the master device of HART protocol. When connecting I-7547 to PC via Ethernet and install the VxComm utility, it will allow users to access the HART devices via virtual COM-port of PC. Therefore, users can make data collection and processing of HART network easier and quicker by applying I-7547. The application fields can be HART bus monitoring, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, Petrochemical Industry Application, etc. In addition, we also provide the free HC_Tool utility for module configuration and HART communication test easily.




Features:

• Support HART Short/Long frame
• Support HART Burst mode
• Support point-to-point or multi-drop HART mode
• Support connecting up to 15 HART slave devices
• Allow two HART masters
• Provide HC_Tool utility for module configuration and HART communication
• Support firmware update via Ethernet
• Provide PWR / TxRx indication LED
• 4KV ESD Protection
• Built-in Watchdog
• Selectable 250Ω load resistor
• Provide four HART channels
• Support VxComm technique
• Built-In Web Server for network setting

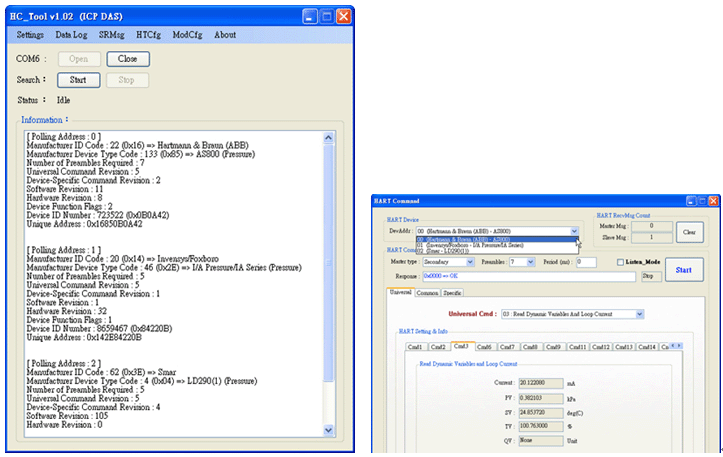

Utility Features:



• Search all HART devices automatically.
• Provide HART Universal & Common-Practice command (v6.0) for HART device configuration.
• Provide module configuration and HART communication easily and quickly.
• Provide data logging for HART communication.

For more information, please visit the following website:
https://www.icpdas.com/en/product/I-7547
