Introduction

The PEX-C64 cards is the new generation product that ICP DAS provides to meet RoHS compliance requirement and is designed as easy replacement for the PISO-C64U without software/driver modification needed.

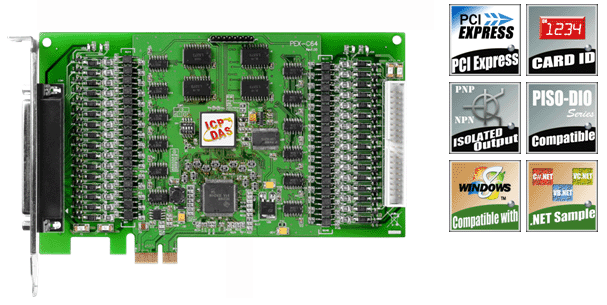

The PEX-C64 has a PCI Express interface and provides 64-channel Optically Isolated Digital Open-collector output. Each digital output channel offers a Darlington transistor. The PEX-C64 eliminates ground-loop problems and provides isolation that protects host computer from damaging voltages. The PEX-C64 also adds a Card ID switch. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PEX-C64 cards in one computer.

The PEX-C64 supports various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT and Windows XP/2003/Vista/2008/7/8 32/64-bit. It also provides the DLL and Active X control, and various language sample programs of Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, Visual C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.




PEX-C64 V.S. PISO-C64U



Feature:
	PCI Express interface
	Card ID function: Users can set Card ID to recognize sequence of card when using two or more I/O cards of the same model in one computer.
	64-channel isolated digital output 3000 VDC isolation voltage
	Compatible with software of PISO-C64U Fully compatible with the PISO-C64U series product
	Support .NET program Provide Microsoft Visual C#.NET 2005 sample programs Provide Microsoft Visual Basic.NET 2005 sample programs Provide Turbo C++, Borland C++, Microsoft C++ sample programs Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs
	Support Microsoft Windows 8 32-/64-bit version OS Support Windows 98/NT/2000 and XP/2003/Vista/7 32-/64-bit version OS

For more information, please visit the PEX-C64 web site.
