PEX-DA4/PEX-DA8/PEX-DA16 – PCI Express, 14-bit 4/8/16–Channel Analog Output Boards

New Products 2014-01-27

Introduction

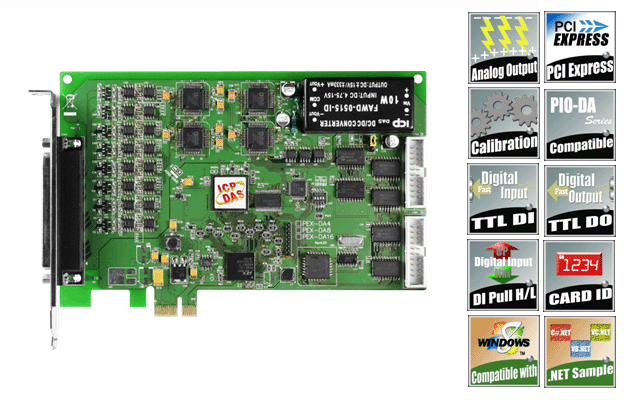

ICP DAS gladly presents you with PEX-DA4/DA8/DA16, analog output boards with PCI Express interface. PEX-DA4/DA8/DA16 respectively equips with 4/8/16 analog output channels, and each of the channel features double buffers.

Most important the voltage output range is from -10V to +10V, and current output range is 0 ~ 20 mA.

In addition, PEX-DA4/DA8/DA16 also features the following advantages by ICP DAS's innovation:
1. Accurate and easy-to-use calibration. ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore. The calibration information can be saved in the EEPROM for long-term use.
2. Channel to channel configuration. In other words, every channel can be individually configured as voltage output or current output!
3. Card ID. ICP DAS provides the card ID function. Users can set a card ID for each card so that when more than two PEX-DA4/DA8/DA16 series boards are used in a computer at the same moment, users can still instantly recognize them one by one.

The PEX-DA4/DA8/DA16 series is designed as easy replacement for the PIO-DA4U/DA8U/DA16U series without any software/driver modification.

PEX-DA4/DA8/DA16 V.S. PIO-DA4U/8U/16U

	PEX-DA4/DA8/DA16	PCI-1202LU/HU
Interface	PCI Express	Universal PCI
Wiring/Pin assignments	Compatible
Software/API	Compatible
DIO response time	200 kHz	1.0 MHz
Card ID	Yes (4-bit)	Yes(4-bit) (Version 1.1 or above)

Feature:
	PCI Express interface

	4/8/16 channels, 14-bit analog output Voltage output range: +10 V ~ -10 V for each channel Current output range:0~20 mA current sink to ground for each channel Double-buffered D/A latches

	Card ID function, user can set Card ID to recognize sequence of card when user has more I/O cards of the same model.

	Digital input port can be set to pull-high or pull-low, when signal wiring happen off-line, the DI status will hold in high or low status(non-floating), so that can help to determine the off-line status.

	16-channel Digital Input 16-channel Digital Output

	Compatible with software of PIO-DA4U/DA8U/DA16U Direct compatible the PIO-DAxU series product.

	Software calibration, the calibration is performed under software control eliminating manual trim-pot adjustments

	Support the .NET program Provide the Microsoft Visual C#.NET 2005 sample program Provide the Microsoft Visual Basic.NET 2005 sample program Provide Turbo C++, Borland c++, Microsoft C++ sample program Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabView sample program

	Support Microsoft Windows 8 32-/64-bit version OS Support Windows 98/NT/2000 and XP/2003/Vista/7 32-/64-bit version OS

	Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR Two pacer timer interrupt source

For more information, please visit the PEX-DA4/PEX-DA8/PEX-DA16 web site.
