Introduction

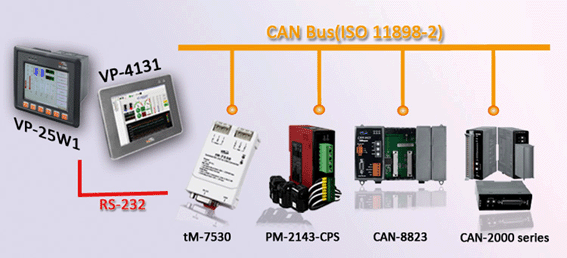

ICP DAS has provided a lot of UART/CAN product solutions which are widely used in the market. These UART/CAN converters can help users to implement the communication between RS-232 and CAN network. In order to cater for costing requirement, we provide a new solution of RS-232/CAN converter-tM-7530. The tM-7530 is a tiny RS-232/CAN device for fitting even narrower environments demands. It provides isolation on both power and CAN bus side. The functions of tM-7530 are fully compatible with I-7530 and I-7530T. Besides, it provides new function such as Listen Only mode. User can use this function to listen CAN bus messages for error detection. With those features, tM-7530 becomes one of the most cost-effective and useful RS-232/CAN converter solutions.



Application:



Utility

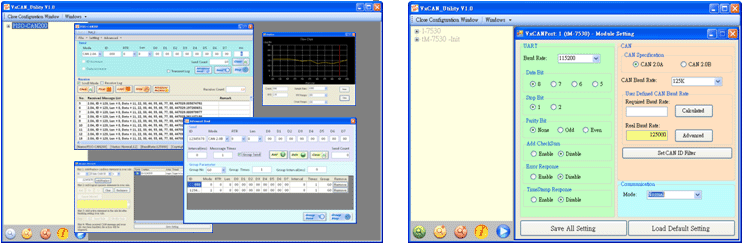

The VxCAN Utility, a configuration, diagnostic and test software tool, is designed to unleash the power of all CAN products of ICP DAS. It is based on the Virtual CAN technique which creates the virtual CAN ports to match the physical CAN interfaces of the installed products (refer to the web site for details about the Virtual CAN technique VxCAN Driver).

Therefore, by means of the VxCAN Utility, it is not necessary to adapt the various utilities or software interface due to the different CAN products. Users just need to focus on the project development and network diagnosis without concerning about what CAN product the system uses.

In order to satisfy in various applications, the VxCAN Utility provides not only the functions of sending and receiving CAN messages, but the functions for message trigger, group transmission and data recording. Using these functions can help users to know what happen in the system network clearly, so that the system problems would be fixed more efficiently and simply.





Features：

• Watchdog inside
• Fully compatible with ISO 11898-2 standard, CAN specification 2.0A and 2.0B
• Support various CAN baud rate from 10K bps to 1M bps and user-defined CAN baud rate
• Support various RS-232 baud rate from 110 bps to 230400 bps
• External option 120 Ω terminator resistor

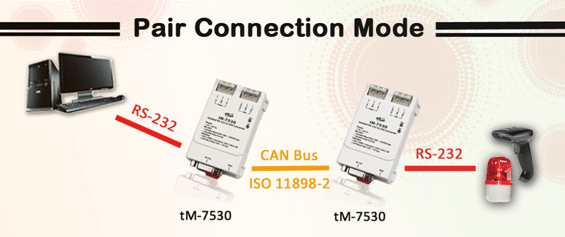

• Support pair connection mode
• Software buffer on CAN bus side and RS-232 side
• Support user-defined end of characters on pair connection mode
• Communication mode(normal , pair connection , and listen only mode ) configuration
• CAN bus and RS-232 parameter configuration
• CAN Messages logger functions
• Support group send CAN messages.
• Presents the CAN Bus loading by the trend via utility
• Supports the configuration of the trigger event for starting transmission, stop reception or recording the messages.

For more information, please visit the following wedsite:
https://www.icpdas.com/en/product/tM-7530
