Introduction:

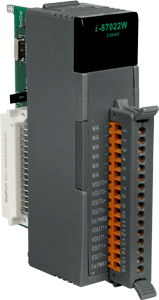

The I-87022W is a sink type analog output module that includes 2 analog output channels, and provides options for configuring power-on and safe values. It also provides a programmable analog output range (0 ~ +10 V, +4 ~ +20 mA or 0 ~ +20 mA), and each analog output can be configured for an individual range. The module provides an RF immunity level matching that defined in the IEC 61000-4-3 standard. The current output is jumper selectable, set to the internal or external power supply current output, together with ±4 KV ESD protection and 3000 VDC intra-module isolation.



Features:

• 2-channel Voltage or Current Output
• Individual Channel Configuration
• 3000 VDC Intra-module Isolation
• 3 kV Channel-to-Channel Isolation
• Read back Voltage or Current
• RF Immunity
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• 4 kV ESD Protection
• Wide Operating Temperature Range: -25 ~ +75°C

Applications:

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

For more details, please visit:
https://www.icpdas.com/en/product/I-87022W-G
