tM-7565 – Tiny USB to CAN Converter

New Products 2019-01-31

Introduction:

ICP DAS provides a wide variety of USB to CAN product solutions that are highly recommended in the marketplace. These USB to CAN converters assist users to implement the communication between USB and CAN based networks. To meet the low cost requirement from our customers, ICPDAS provides a new USB to CAN converter solution – the tM-7565. The tM-7565 module is a tiny USB to CAN converter module that is suitable for narrow environments due to its small size. In addition, it is easy to use for CAN bus testing via a laptop as it has a USB interface. The tM-7565 module includes isolation on both power side and CAN bus side, and provides a faster performance than other USB to CAN modules. The tM-7565 functionality is fully compatible with the I-7565 module, and it also provides new functions such as listen only, which can be used to listen to CAN bus message and for error detection. Based on these features, the tM-7565 module is acost-effective and a practical solution for USB to CAN conversion.

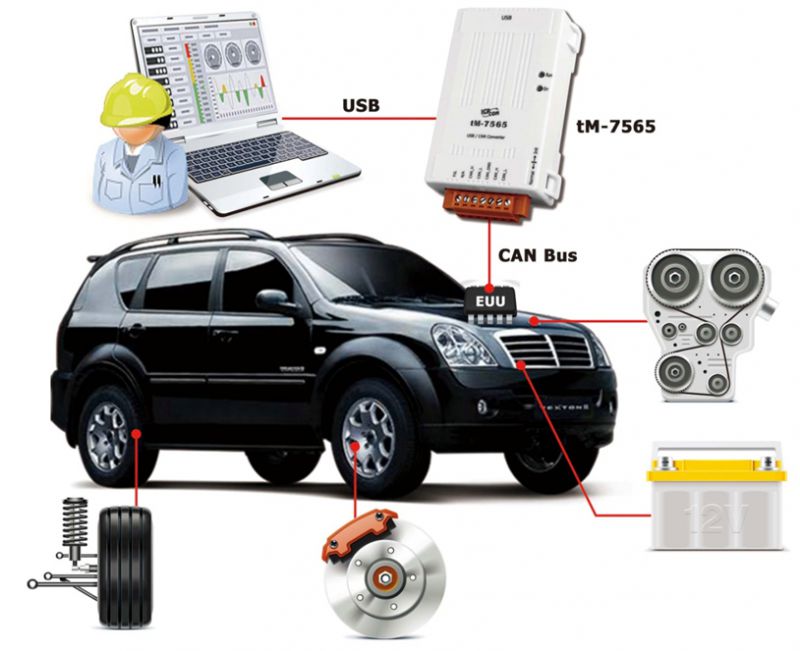

Applications:

Utility:

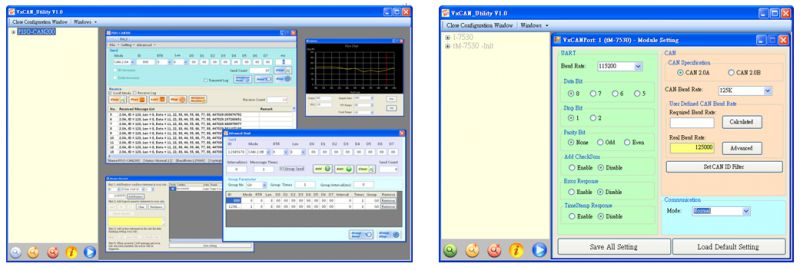

The VxCAN Utility is a configuration, diagnostic and test software tool that is designed to unleash the power of all CAN products from ICP DAS. It is based on the Virtual CAN technique, which creates the virtual CAN ports to match the physical CAN interfaces of the installed products (Refer to the ICP DAS web site for more details related to the Virtual CAN technique VxCAN Driver).

Consequently, it is no longer necessary to use various utilities or software interface to connecting to different CAN products. Users just need to focus on the project development and network diagnosis without concerning about what CAN product the system uses.

In order to satisfy requirements of various applications, the VxCAN Utility provides not only the functions of sending and receiving CAN messages, but also the functions for message trigger, group transmission and data record. Using these functions can help users to know what happen in the system network clearly, so that the system problems would be fixed more efficiently and simply.

Features:

Internal Watchdog
Fully compatible with the ISO 11898-2 standard, and CAN specifications 2.0A and 2.0B
Supports a range of CAN Baud Rate from 10 K-bps to 1 M-bps, as well as user-defined CAN Baud Rate.
Supports a range of USB Baud Rates from 110 bps to 230400 bps
Build-in 120 Ω terminator resistor selectable via jumper

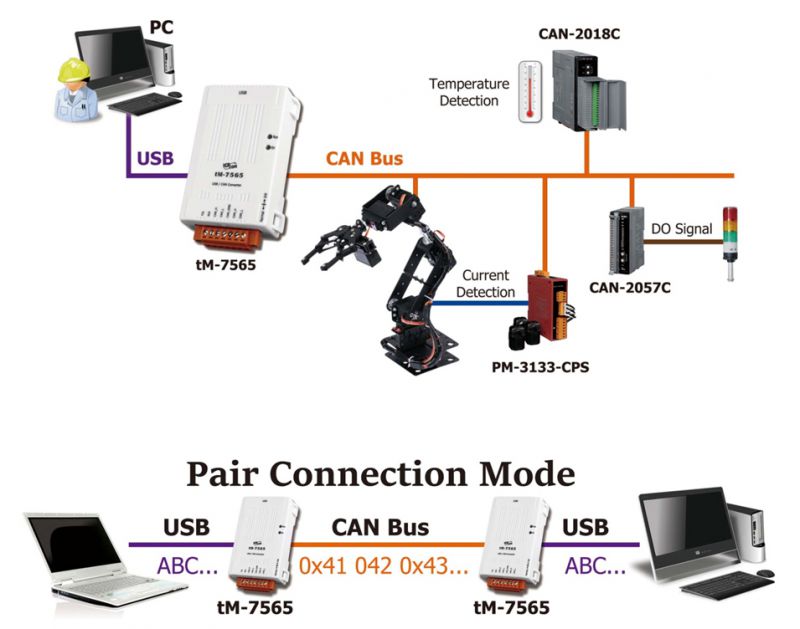

Supports pair-connection mode
Software buffer on both the CAN bus side and the USB side
Supports user-defined end of characters in pair-connection mode
Configurable communication mode(normal , pair-connection , and listen-only mode )
Configurable CAN bus and USB parameters
CAN Message logger functions
Supports group sending of CAN messages.
Able to monitor CAN Bus loading by the trend via a utility
Supports configuration of trigger event for starting transmission, stopping reception or recording messages.

Comparison Table for USB to CAN Converter modules:

Models	tM-7565	I-7565	I-7565-H1	I-7565-H2
Hardware
CAN Interface
Transceiver	NXP TJA 1042	82C250	NXP TJA 1042
Max. CAN Baud Rate	1M bps
Terminator Resistor	120Ω terminator resistor selectable via jumper
Specification	ISO 11898-2
Isolation	DC-DC: 3000 VDC Photocoupler: 2500 Vrms
USB Interface
USB Interface	Type B
Max. USB Baud Rate	230400 bps	115200 bps	12 Mbps
Mechanism
Dimensions (W x H x D)	52 x 93 x 27 mm	72 x 118 x 33 mm
Power
Power Consumption	1W	1.5W
Software
Function
Transparent	O	O	O
CAN Bus Listen Only Mode	O	X	X
Performance
Performance	CAN to USB: FPS >=520 USB to CAN: FPS >=520 (2.0A@1Mbps, 115200, n, 8, 1)	CAN to USB: FPS >=338 USB to CAN: FPS >=382 (2.0A@1Mbps, 115200, n, 8, 1)	FPS: 3000

For more information, please visit: https://www.icpdas.com/en/product/tM-7565
