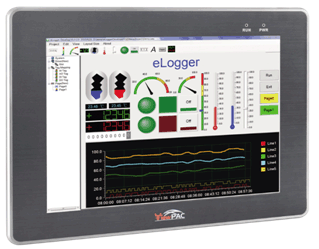

VP-5208-CE7 – With 12.1" Touch Screen and Win-GRAF Soft-logic supported ViewPAC

New Products 2019-01-21

Introduction:

ViewPAC series are innovative product developed by ICP DAS. ViewPAC provides perfect solution to integrate HMI, operation and data acquisition function in just one unit. 3 slots in the back of the ViewPAC-xx3x series allow users to choose I/O modules from various items and to complete their data acquisition applications. In the meantime, users can also check device status from ViewPAC HMI. This combination product solves the shortage of monitors on the traditional spot and makes personnel there being able to debug and correct errors in time.

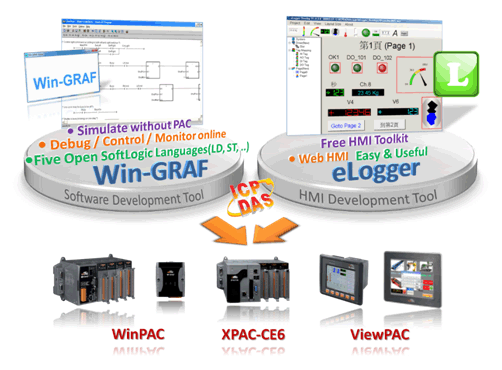

ICP DAS releases the latest VP-5208-CE7 which features Cortex-A8 CPU and Windows Embedded Compact 7 operation system inside. Win-GRAF is compliance with IEC61131-3 standards. Thinking about the requirements from our users, in addition to the Win-GRAF soft-logic, ICP DAS provides free HMI software called eLogger. eLogger is easy-to-use programming software with just icons drag-and-put to finish HMI developing. Furthermore, VP-5208-CE7 features Windows CE7, users can develop and manage all applications through VB.NET and C#. After completing the projects, users can do data exchange with Win-GRAF. This advantage makes your application field much more practical and convenient ever!

Spotlight Features:

Front TFT LCD monitor is compliance with NEMA 4 and IP65
Featured Win-GRAF soft-logic software is compliance with IEC61131-3 standards
Support free eLogger HMI develop software
Support different types of protocols: Modbus TCP/UDP, Modbus RTU/ASCII Master, Modbus TCP/RTU Slave, and DCON
Data Binding function allows exchanging data among PACs
On-line Change can make minor changes during the project is running. There is no need to call off the running program.
Support Online debug/ control, and Offline simulation for programs
Can create customized Function Blocks using Visual Studio 2008 and run in Win-GRAF

Application:

Ordering Information:

VP-2208-CE7 CR	7" Win-GRAF based ViewPAC with Cortex-A8, 720 MHz CPU and CE7 OS (RoHS)
VP-3208-CE7 CR	8.4" Win-GRAF based ViewPAC with Cortex-A8, 1 GHz CPU and CE7 OS (RoHS)
VP-4208-CE7 CR	10.4" Win-GRAF based ViewPAC with Cortex-A8, 1 GHz CPU and CE7 OS (RoHS)
VP-5208-CE7 CR	12.1" Win-GRAF based ViewPAC with Cortex-A8, 1 GHz CPU and CE7 OS (RoHS)
VP-6208-CE7 CR	15" Win-GRAF based ViewPAC with Cortex-A8, 1 GHz CPU and CE7 OS (RoHS)

Related Products:

Win-GRAF Development Software
Win-GRAF Workbench	Win-GRAF Workbench Software (Large I/O Tags) with one USB Dongle.

More Win-GRAF related Information:
	Win-GRAF ViewPAC Website: https://www.icpdas.com/en/product/VP-5208-CE7 Win-GRAF Soft-Logic software website: https://www.icpdas.com/en/product/guide+Software+Development__Tools+Win-GRAF
