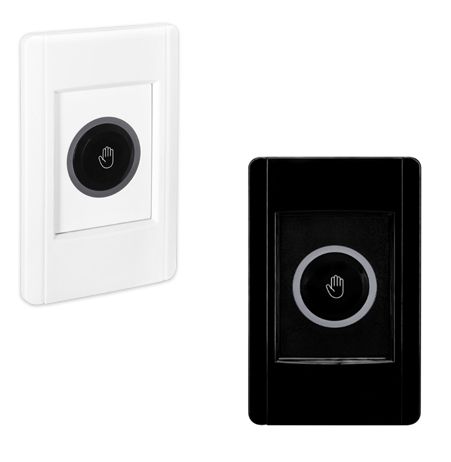

ACS-20B-MRTU – No-touch Infrared Sensor Switch (Black Cover)
ACS-20W-MRTU – No-touch Infrared Sensor Switch (White Cover)



The new released ACS-20B(W)-MRTU (No-touch Infrared Sensor Switch) from ICP DAS can be used to open a door by using palm induction, which makes it more convenient when entering or exiting a room or building. The inductive distance and the delay time for door opening are adjustable, and it also has red and blue indicator lights to show the status of the switch. By using ACS-20B(W)-MRTU, a time stamp recording of the action can be simultaneously logged when someone entering or exiting the door.

ACS-20B(W)-MRTU features an RS-485 interface and provides Modbus RTU communication, which can remotely enable/disable the switch and get the induction time records by the access control system. In addition, ACS-20B(W)-MRTU can be used not only for access control system but also in controls of other electronic devices. When it is triggered in toggle mode at the first time, the switch will output ON signal, and will output OFF signal next time.

ACS-20B(W)-MRTU can be used with the electric doors to prevent the spread of infectious bacteria/virus via touching the surfaces. The switches can be used in medical institutions, retail stores, the food industry, industrial plants, and offices, etc. to provide an excellent sanitary environment.



Features:

• Special infrared code to against interference
• Multiple operating modes: Sensing/Standby, Lock, Toggle Switch.
• Provides 8 locked periods each day
• Double-color status indicator
• Induction distance: 1 to 12 cm
• With Relay (N.C. and N.O. output)
• Relay hold time: 0.5 to 20 sec
• The switches time recording: 1,600 records
• Communication interface and protocol: RS-485/Modbus RTU

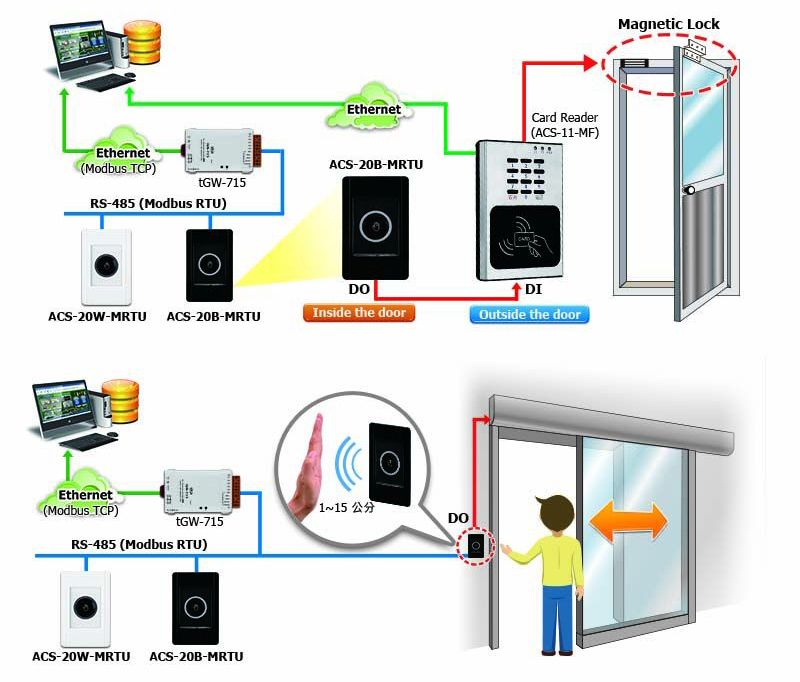

Application:

For more details, please refer to the following links:

ACS-20B(W)-MRTU Datasheet:
https://www.icpdas.com/web/product/download/iiot/baha/acs/acs-20/document/data_sheet/ACS-20B(W)-MRTU_datasheet_en.pdf
