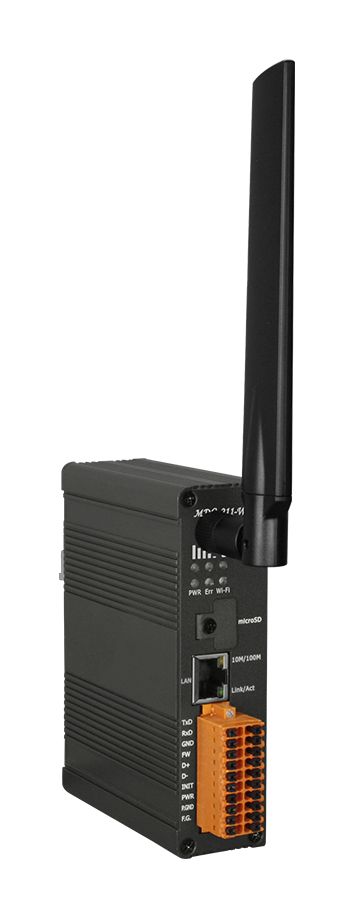

MDC-211-WF – Wi-Fi Modbus data concentrator with 1 x Ethernet, 1 x RS-232 and 1 x RS-485

Introduction:

MDC-211-WF Modbus data concentrator developed by ICP DAS, it features  Ethernet, Wi-Fi Wireless, RS-232 and RS-485 communication interfaces, and can link the Modbus RTU devices to the Ethernet network. MDC-211-WF can read the data of Modbus RTU device according to the user-defined command table, and integrate the data from different Modbus RTU devices into the format with continuous address so that the remote monitor host can connect to MDC-211-WF from Ethernet to access the data from multiple Modbus RTU devices at once.

Through MDC-211-WF's Modbus data centralized management function, as well as the convenient and communication ability of the Ethernet network, it can quickly establish a stable remote monitoring system, simplify the complexity during the process of data acquisition, reduces the Ethernet network traffic load, and enhances the system efficiency.



Advantages:

The MDC-211-WF Modbus data concentrator, not only helps users to manage the on-site RS-232 or RS-485 Modbus RTU devices, it can also works in remote distance where the wiring is difficult to deploy, with the Wi-Fi wireless communication ability, it is easy to communicate with the Modbus RTU devices.

MDC-211-WF Modbus data concentrator is perfect to work with the Supervisory Control and Data Acquisition (SCADA) system which is widely used in all kinds of industries. With a few simple settings, MDC-211-WF Modbus data concentrator can link the distributed Modbus RTU devices to the Ethernet network, which is the best solution for the user to establish a remote monitoring control system quickly.



Features:

• Frequency: 2.4/5 GHz
• Full compatible with IEEE 802.11 a/b/g
• Wireless Transmission Range up to 50 m (LOS)
• Supports the Modbus RTU Master and Slave
• Upgrade Modbus/RTU Devices with Ethernet Communication Ability
• Accelerate the Reading of Multiple Modbus/RTU Devices
• Supports Execution of up to 240 Modbus Polling Commands
• Supports up to 9600 Modbus Registers for each DI/DO/AI/AO
• Supports Friendly Web UI Configuration
• Easy System Backup and Copy with .CSV file
