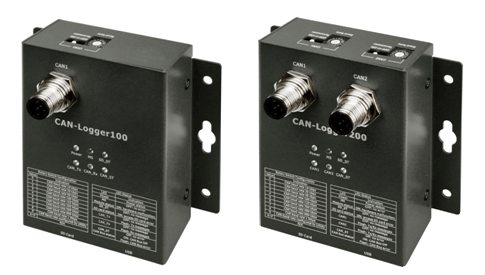

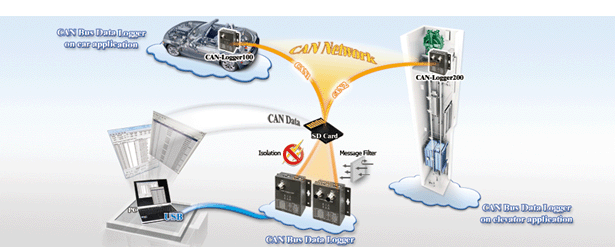

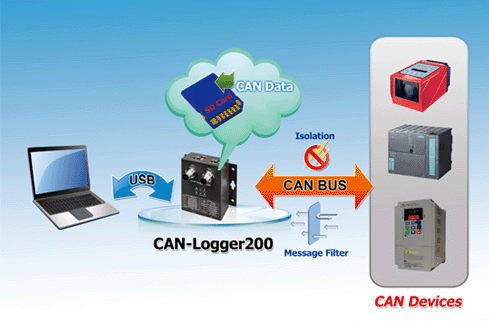

The CAN-Logger series devices (CAN-Logger100 / CAN-Logger200) are high-performance intelligent CAN Bus data logger devices with one/two CAN port(s) that help to make data collection and process on a CAN Bus network easier and quicker. The powerful CPU of the CAN-Logger device provides accurate time-stamp for each CAN message and supports storage media like SDHC type flash for saving these CAN messages; these CAN messages can be used for analysis and diagnostic of the CAN Bus network. In order to enhance the portability of the CAN-Logger series, these modules support redundant power which can be powered by the USB interface or by the M12 connectors on the CAN Bus interface.





The CAN-Logger series provides utility tool for transmitting/receiving CAN messages, setting user-defined CAN baud rate, CAN message filter configuration and diagnostic function for logged data.



Features:

• Compatible with CAN specification 2.0 parts A and B
• 2500 Vrms photocoupler isolation on the CAN port
• Fully compatible with the ISO 11898-2 standard
• Supports CAN Bus acceptance filter configuration
• CAN messages are time-stamped with 10 microseconds resolution
• Programmable CAN Bus baud rate from 10 kbps to 1Mbps
• USB 2.0 High Speed Compatibility
• Supports 4 to 32 GB SDHC type flash for saving CAN messages
• Built-in jumper for the 120 Ω terminal resistor of the CAN port
• Power from CAN bus or from the USB port
• Built-in real time clock with battery backup

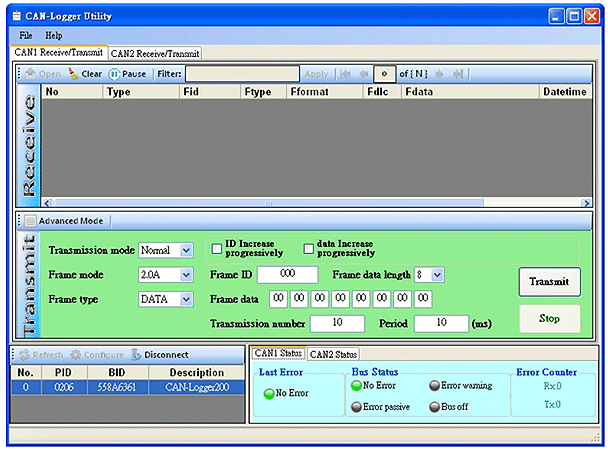

• Provides configuration utility to transmit/receive CAN messages
