Introduction:

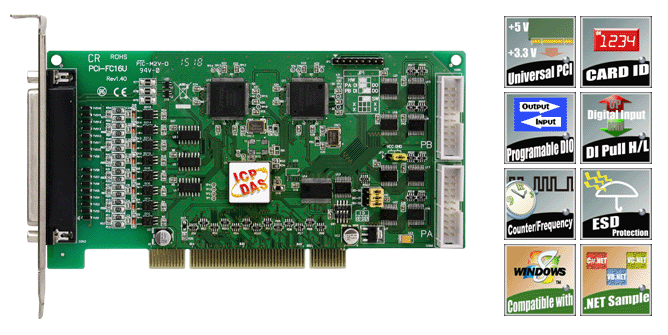

The PCI-FC16U board is the new generation product that ICP DAS provides to meet RoHS compliance requirement.

The PCI-FC16U is a 32-bit hardware-type high-speed Counter/Frequency board that supports both the 3.3 V and the 5 V Universal PCI bus. The card provides 16 channels that can be individually configured for either frequency measurement or up-counter applications, and can support high-frequency signals up to 250 kHz. The PCI-FC16U board also includes 32 programmable Digital I/O channels.

The PCI-FC16U board includes an onboard Card ID switch that enables the board to be easily recognized via software if two or more boards are installed in the same computer. The pull-high/pull-low resistors allow the DI status to be predefined as either high or low instead of remaining floating if the DI channels are disconnected or interrupted.

The PCI-FC16U board supports a variety of operating systems, such as DOS, 32-/64-bit Windows XP/2003/2008/7 and Windows 8. ICP DAS also provides a DLL and Active X control for the PCI-2602U, together with sample programs in various languages, including Turbo C++, Borland C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW, enabling help users to quickly and easily develop their custom applications.



Feature:
	Universal PCI interface, supports both +5 V and +3.3 V PCI bus.
	Card ID function, users can set Card ID to recognize sequence of card when users use two or more same model I/O cards.
	32-channel programmable DIO Digital input status can be set to pull-high or pull-low; when the digital input channels are unconnected, the status will hold in high or low status. (non-floating)
	16-channel Up Counter or Frequency Measurement (Pulse Width = 2 μs Min.) Digital Filter: 1 ~ 32767 (μs) ± 2 kV ESD Protection for each channels
	Support .NET program Provide Microsoft Visual C#.NET 2005 sample programs Provide Microsoft Visual Basic.NET 2005 sample programs Provide Turbo C++, Borland C++, Microsoft C++ sample programs Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs
	Support32/64-bit Windows 8 Support 32/64-bit Windows XP/2003/7/2008

For more information, please visit the PCI-FC16U web site.
