The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment.

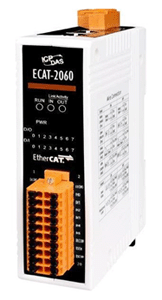

The ECAT-2060 is built in isolated 6 digital inputs and 6 relay outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It can be converted to Distributed Clock(DC) version via EtherCAT master tools. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily. For more information, please refer to the relevant website and documents for these devices, which can be found at following link:
https://www.icpdas.com/en/product/ECAT-2060



Features:

• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations up to 100 meters (100BASE-TX)
• Support daisy chain connection
• Can be converted to Distributed Clock(DC) version
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators for the I/O status
• Built-In digital I/O: 6 DI and 6 Form A Relay DO
• RoHS compliant
• ESD Protection 4 KV Contact for each channel
