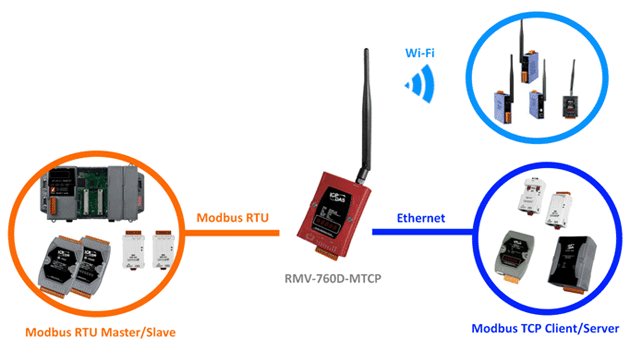

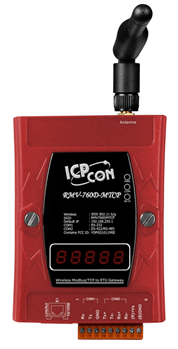

RMV-760D-TCP is a Modbus TCP/RTU gateway. It exchanges Modbus commands from Modbus TCP/RTU master to Modbus RTU/TCP slave. Modbus TCP command can be transmitted not only through Ethernet port but also Wi-Fi interface. It supports VxComm and Pair-Connection functions. Users can choose Ethernet mode or Wi-Fi mode to do the pair connection, which provides TCP data tunneling between two serial devices.



General Features:

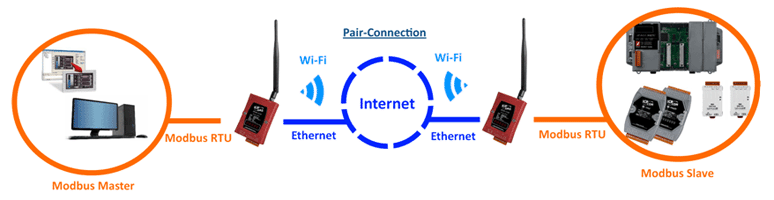

• Supports pair-connection applications

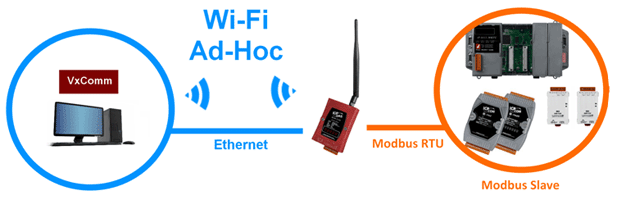

• Supports Virtual COM applications
• Application Modes: Virtual COM, MB TCP Server/Client, MB RTU Master/Slave
• Supports static IP/DHCP (Ad Hoc mode doesn’t support DHCP)
• Ethernet Protocol: TCP, UDP, IP, ICMP, ARP,RARP
• Support IEEE 802.11 b/g for Wi-Fi mode and Ad Hoc mode
• Support WEP-64,WEP-128, WPA-TKIP and WPA2-AES encryption for Wi-Fi mode

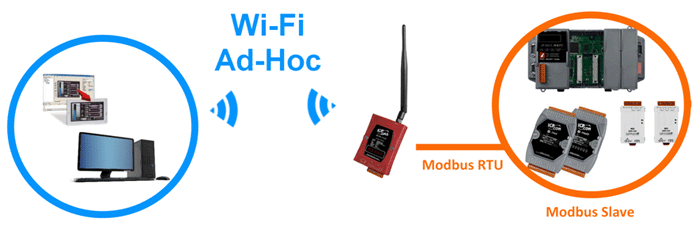

• Support WEP-64,WEP-128 encryption for Ad Hoc mode
• Auto control channel in AP mode
• Provides 1~13 RF channels
• Easy firmware update via Ethernet
• Removable terminal block connector
• RoHS compliant with Halogen-free
• ICP DAS provides the RMV-760D-MTCP configuration utility for Windows 2K/XP/Vista and Win 7.
  • Ethernet Settings
  • Wi-Fi Settings
  • Serial Port Settings
  • Operation Mode Settings



Statement of connection mode

   █ Communication Mode:
        █ Modbus TCP and Modbus RTU data exchange.
            Exchange data between Modbus TCP and Modbus RTU.








█ Transmission Type:

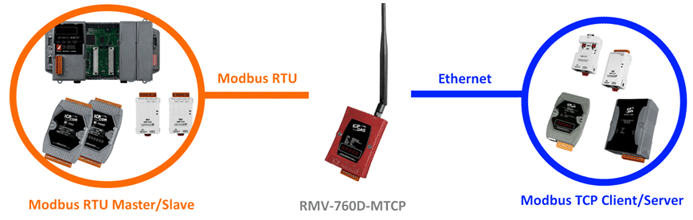

        █ Ethernet:
            This mode uses RJ-45 Ethernet cable to connect to the Internet and transmit data to others devices.

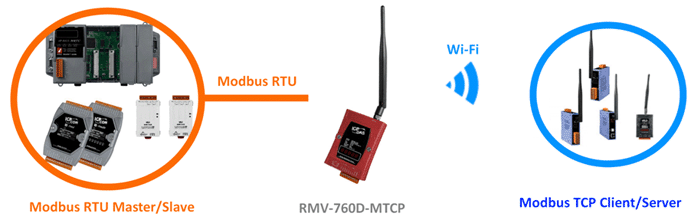

              This mode uses Wi-Fi AP to connect to the Internet and transmit data.





For more details, please visit: https://www.icpdas.com/en/product/RMV-760D-MTCP
