PROFINET is an open Industrial Ethernet standard developed by the PROFIBUS Organization (PI). Based on the versatility of Ethernet, PROFINET makes vertical integration of field level to Enterprise level easily. PROFINET has good performance in real-time and stability for communication, so it can cover all requirements of the Automation Industry. PROFINET is fit for factory automation, process automation, safety applications and motion control applications, etc.

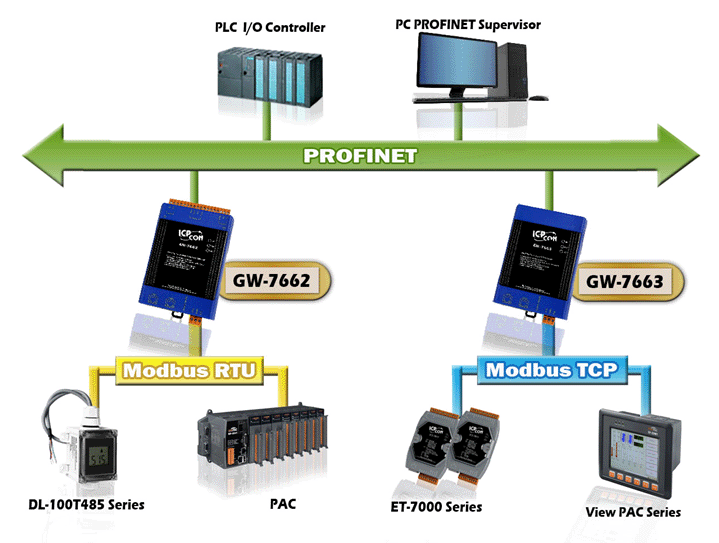

The GW-7663 is specially designed for PROFINET IO device. It allows PROFINET controller to access Modbus TCP devices. These Modbus TCP devices maybe a PLC, a sensor, ICP DAS ET-7000 series modules and so forth. We also provide the utility software for users to configure GW-7663. By applying the GW-7663, users can integrate their Modbus devices into PROFINET network easily.





Features:

• Protocol: PROFINET IO Device
• Supported Ethernet services: ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
• Supported PROFINET services: RTC, RTA, CL-RPC, DCP, LLDP, I&M
• PROFINET Conformance Class B and RT Class 1
• Cyclic Time: 1ms (min)
• Generic GSDML File Provided
• Max. Input / Output data :512/512 bytes
• Support Modbus TCP format
• Support Modbus Master(Client) and Slave(Server) mode
• Maximum support 8 Modbus servers in Modbus Client mode
• Maximum support 4 Modbus clients in Modbus Server mode
• Integrated 2-Port Switch
• Automatic MDI / MDI-X Crossover for Plug-and-play
• Provide LED indicators
• Robust, fan less design
• 4 kV Contact ESD protection for any terminal
• Wide range of power input (+10 to +30 VDC) and operating temperature (-25 to +75°C)

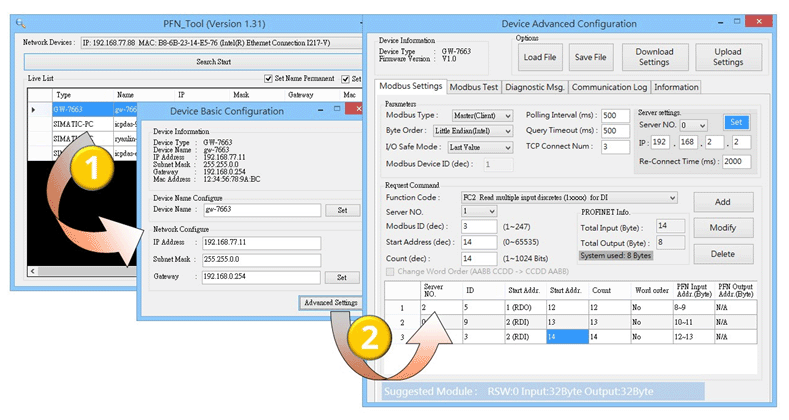

Utility:

• Provide device searching function
• Show firmware version
• Support network parameters configuration
• Provide Modbus device setting
• Show diagnostic messages of the GW-7663
• Provide Modbus test function
• Provide Communication Log of Modbus network

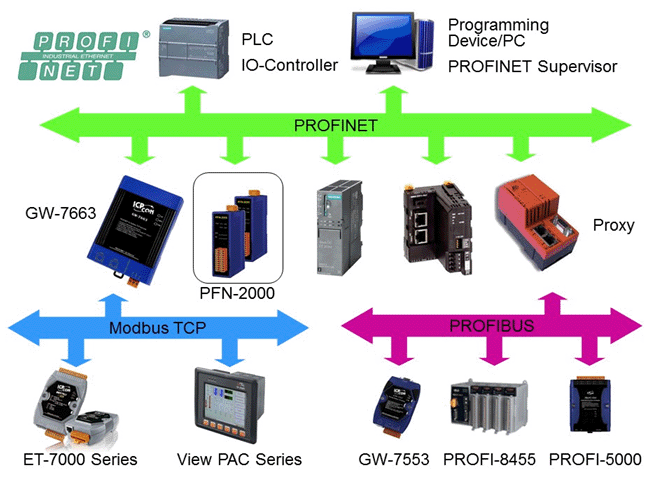

PROFINET Converter & Gateway Products Comparison Table
