WFM-R14 – Wi-Fi I/O Module, 2-channel Form-A Relay Output and 12-channel Form-C Relay Output with Metal Case
New Products
2016-03-15

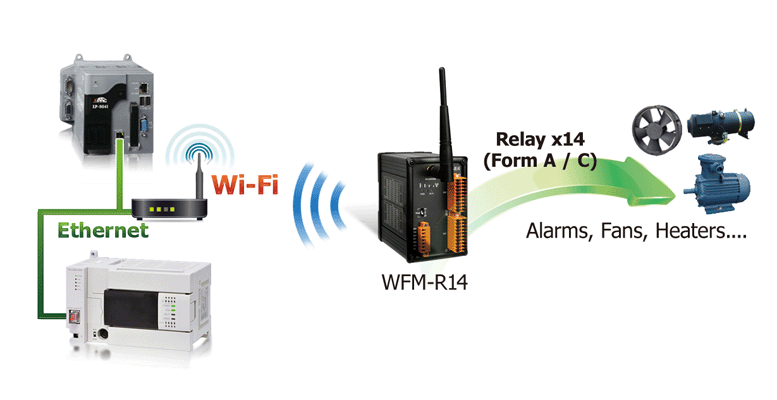

The WFM-R14 is a 2-channel Form-A Relay Output and 12-channel Form-C Relay output module with Metal Case which provides stronger protection. In addition, the WFM-R14 features WLAN connection that complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WFM-R14 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WFM-R14 also supports Modbus TCP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.
Features:
- Compatible with IEEE 802.11b/g standards
- Supports infrastructure and ad hoc modes for wireless networks
- Supports Relay type digital outputs(Form A/Form C)
- Supports WEP, WPA and WPA2 wireless encryption
- Supports Modbus TCP protocols
- Supports DHCP network configuration
- Supports Pair Connection mode
- Wide Operating Temperature Range
- Built-in Watchdog
- 4 kV ESD Protection
Specifications:
| Model Name | WF-2055 | WF-2060 | WF-2042 | WF-2051 | WFM-R14 | |
|---|---|---|---|---|---|---|
| I/O Type | Digital Input & Output | Digital Input & Relay Output | Digital Output | Digital Input | Relay Output | |
| DI | Channel | 8 | 6 | - | 16 | - |
| Type | Dry, Wet | Dry, Wet | - | Dry, Wet | - | |
| Sink/Source | Sink, Source | Sink, Source | - | Sink, Source | - | |
| DO | Channel | 8 | 6 | - | 16 | - |
| Type | Open Collector | - | Open Collector | - | - | |
| Sink/Source | Sink | - | Sink | - | - | |
| Relay Output | Channel | - | 6 | - | - | 14 |
| Relay | - | Power Relay | - | - | Power Relay | |
| Type | - | Form A | - | - | 2 Form A 14 Form C |
|
For more information about the product, please refer to the following website: https://www.icpdas.com/en/product/WFM-R14
