PM-4324-CPS – CANopen Multi-circuit Smart Power Meter
New Products
2019-03-19
The CANopen is a kind of network protocols evolving from CAN (Controller Area Network) bus, used on car control system in early days, and has been greatly used in various applications, such as vehicles, industrial machine, building automation, medical devices, maritime application, restaurant appliance, laboratory equipment and research. The PM-4324-CPS provides the error process mechanisms and message priority concepts. These features can improve the network reliability and transmission efficiency. Furthermore, CAN supplies the multi-master capabilities, and is especially suitable for networking “intelligent” devices as well as sensors and actuators within a system or sub-system.
The PM-4324-CPS series multi-circuit power meter monitors up to 8 three-phase circuits or 24 single-phase circuits, or any combination of single or three-phase circuits.

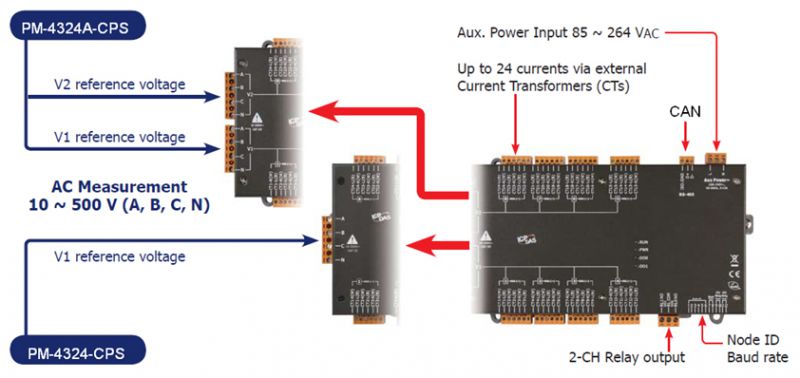

The PM-4324-CPS series can measure up to 24 currents via external Current Transformers (CTs). This flexibility makes the PM-4324-CPS series perfect for multi-tenant facilities such as residential projects, office buildings and shopping malls. This compact instrument is designed to easily fit into existing panelboards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device.It also provides the CANopen interface for users to easily gather the real-time power consumption information in their CANopen applications. User can use CANopen PDO event time feature to response messages at regular intervals automatically. It makes the communication more efficient when collecting a lot of remote power information. In addition, the PM-4324-CPS also owns the arbitration mechanism which can avoid data collision and error detection.
Hardware Features: |
|
|
|
Communication Features: |
|
|
|
Power Meter Features: |
|
|
|
Related Product:
PCI CANopen Master board (PISO-CPM100U)https://www.icpdas.com/en/product/PISO-CPM100U-D
https://www.icpdas.com/en/product/PISO-CPM100U-T
USB CANopen Master module (I-7565-CPM)
https://www.icpdas.com/en/product/I-7565-CPM-G
1Port High Performance CANopen Master module (I-8123W)
https://www.icpdas.com/en/product/I-8123W-G
CANopen Power Meter Series:
| Model Name | PM-3112/3114-CPS | PM-3133-CPS | PM-3033-CPS | PM-4324-CPS |
| Wiring | 1P2W-2CT/1P4W-4CT | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT | ||
| Input Voltage | 10 ~ 300 V | 10 ~ 500 V | ||
| Input Current | CT Φ10 mm (60 A), CT Φ16 mm (100 A), CT Φ24mm (200 A) | CTØ10 mm (60 A); CTØ16 mm (100 A); CTØ24 mm (200 A); CTØ36 mm (300 A); CTØ36 mm (400 A) | 1A or 5A | CTØ10 mm (60 A); CTØ16 mm (100 A); CTØ24 mm (200 A); CTØ36 mm (300 A); CTØ36 mm (400 A) |
| Input Frequency | 60/50 Hz | |||
| kWh Accuracy | 1%(PF=1) | |||
| Power Relay | Form A (Normal Open) x 2 | - | Form A (Normal Open) x 2 | |
| Data Update Rate | 1 Second | |||
| Operating Temperature | -20 ~ +70 °C | |||
| Dimensions (W x L x H) | 127(L) mm x 33(W) mm x 105(H) mm | 237 mm x 52 mm x 134 mm | ||
CAN & CANopen series Product:
https://www.icpdas.com/en/product/guide+Industrial__Communication+Fieldbus__Communication+CANopen#568
For more information, please visit the following website:
https://www.icpdas.com/en/product/guide+Energy__Management+Power__Meter+Single-phase__Smart__Power__Meter#487
