Introduction:

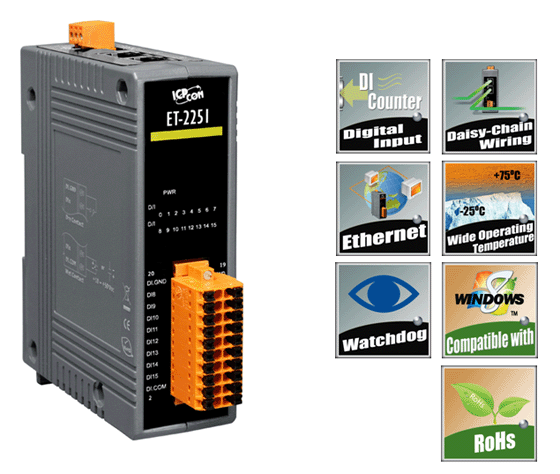

Providing a variety of digital I/O functions, the ET-2251 module is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industrial applications, and is now the most commonly available means of connecting industrial electronic devices. This makes the ET-2251 module being perfectly integrated with the HMI, SCADA, PLC or other software systems.

The ET-2251 provides 16 wet/dry contact Digital Input channels. Each input channel can be used as a 32-bit counter. With 2 Ethernet ports, the ET-2251 allows daisy chain connection which enables flexibility in devices deployment; easy installation and lower infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge and 3000 VDC I/O isolation to enhance noise protection capabilities in industrial environments.

The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the ET-2251 module can continuously poll the status of the local DI channels and then write to the remote DO devices via the Modbus/TCP protocol.

It is equipped with removable terminal block connector for easy and robust wiring in industrial applications, and features a powerful 32-bit ARM MCU to handle efficient network trafficking.



Feature:
	Built-in Web Server Support Modbus TCP/UDP Protocols Powerful 32-bit MCU Handles Efficient Network Traffic 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring Dual Watchdog Supports web configuration and firmware update via Ethernet
	16 Wet contact & Dry Contact Digital Input Channels LED Display to Indicate the I/O status I/O Pair Connection (Push and Polling)
	Includes a eSearch Utility for Windows XP/2003/2008/7 and Windows 8 (32/64-bit)
	Wide Operating Temperature Range: -25 to +75°C
	RoHs compliant & no Halogen

For more information, please visit the ET-2251 web site.
