Introduction:

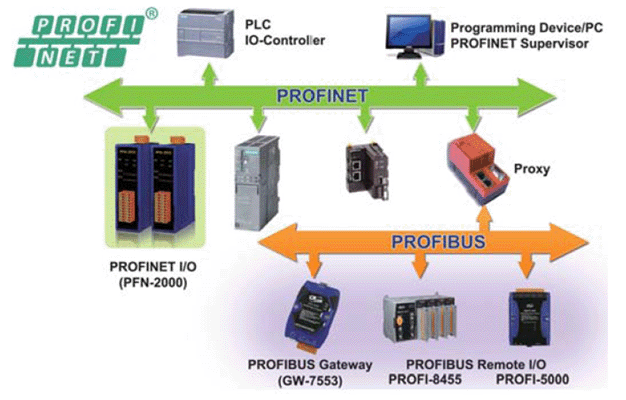

PROFINET is an open Industrial Ethernet standard developed by the PROFIBUS Organization (PI). Based on the versatility of Ethernet, PROFINET makes vertical integration of field level to Enterprise level easily. PROFINET has good performance in real-time and stability for communication, so it can cover all requirements of the Automation Industry. PROFINET is perfect for factory automation, process automation, safety applications and motion control applications, etc.

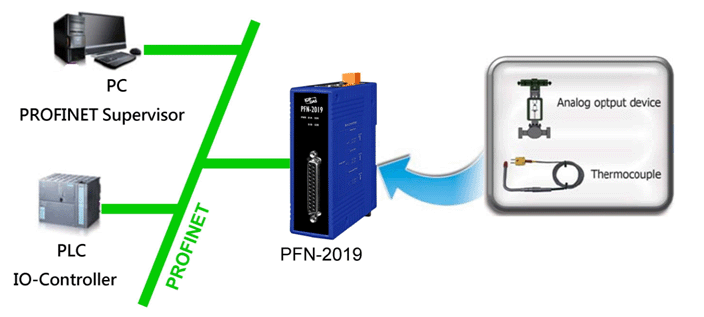

The PFN-2019 is one of the PROFINET I/O series products produced by ICP DAS. It has 10-channel universal analog input with voltage and current input types. It provides accurate thermocouple measurement and automatically cold-junction compensation for each channel. By applying the PFN-2019, users can easily establish a PROFINET network with other PROFINET IO Controllers.






Features:

• Protocol: PROFINET IO Device
• Supported Ethernet services: ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
• Supported PROFINET services: RTC, RTA, CL-RPC, DCP, LLDP, I&M
• PROFINET Conformance Class B and RT Class 1
• Cyclic Time: 1ms (min)
• Generic GSDML File Provided
• Integrated 2-port Ethernet Switch for Daisy-Chain Topology
• Automatic MDI / MDI-X Crossover for Plug-and-play
• 16-bits resolution & 10Hz sample rate
• Supports thermocouple devices with J,K,T,E,R,S,B,N,C
• Provide LED indicators
• Robust, fan less design
• 4 kV Contact ESD protection for any terminal
• Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +70°C)

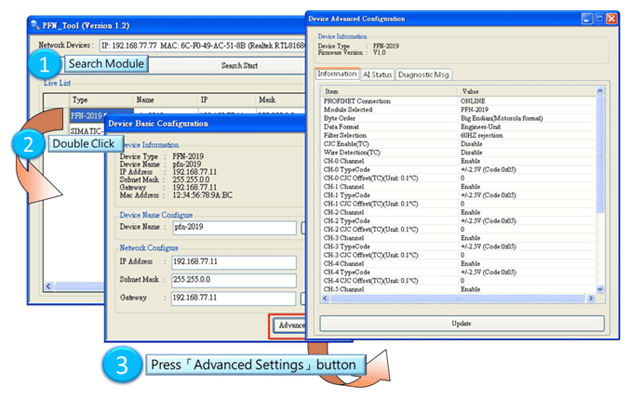

Utility:

• Provide device search function
• Show firmware version
• Support network parameters configuration
• Show module parameters of the PFN-2019
• Show diagnostic messages of the PFN-2019



PROFINET I/O Products Comparison Table
