The USB-2064-16 provided by ICP DAS is a new solution of relay output via USB interface. It is similar to USB-2064 which provides easy USB plug-and-play operation and is equipped with power rating relay for automation applications. Comparing with the traditional PC-based card like PCI, PC/104 and ISA cards, users can achieve relay control more easily and quickly via USB-2064-16.

The USB-2064-16 is a full-speed USB device with 16-channel power relay module that supports more channels than USB-2064 (8-channel). It provides a power relay rating with 3A at 240VAC or 30VDC. This specification can satisfy most requirements for driving external controlled devices such as lights, fans, alarm systems and various electronic devices in industrial automation. Besides, the USB-2064-16 also features power-on value to customize the initial state. Moreover, the safety value can be used to secure the devices in the field.

Through ICP DAS USB I/O utility, users can configure and test USB-2064-16 quickly and easily without programming. ICP DAS also provides a friendly API library for users to develop their own USB applications. The application fields can be building automation, factory automation, machine automation, data acquisition and control, environment control and monitoring, and laboratory equipment & research, etc.

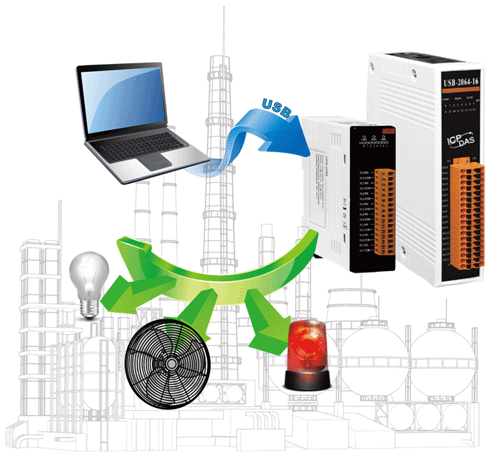

USB-2064/USB-2064-16 application


Features:

• 16-channel power relay output
• 3A current contact rating at 250VAC/30VDC
• Power-On value when boot-up
• Safety functionality when communication failed
• Wide operating temperature range:-25°C to +75°C
• 3000 VDC Intra-Module isolation
• USB 1.1/2.0 Full-Speed
• No external power supply (USB Bus Powered)
• Plug-and-Play without driver
• Lockable USB cable
• Support firmware update via USB
• Utility tool for operating module configuration and I/O testing easily and quickly
• PWR/RUN/ERR LED indicators
• Built-in dual watchdog (hardware/software)
• Provide API library (VC/VB/BCB/.NET)
• Module supported for Win2000/XP and Win 7,8,10 (32/64 bit)

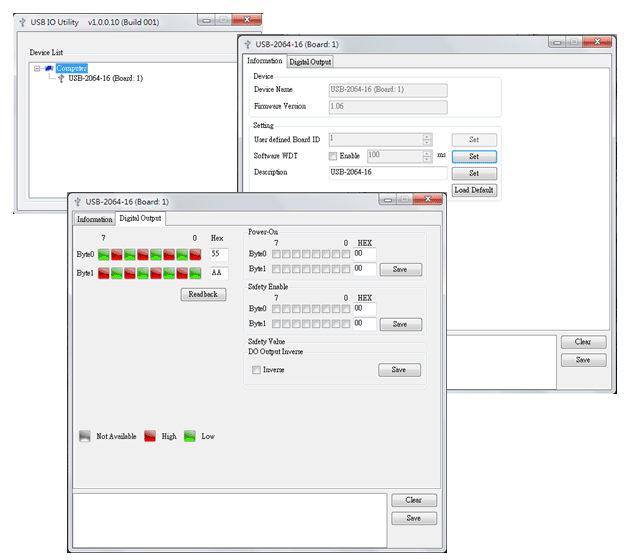

Utility Features:

• Automatically scan all ICP DAS USB I/O modules
• Easily and quickly configure and test USB I/O modules
• Completely and precisely log IO data for analysis
