Introduction:

CANopen is one kind of the network protocols based on the CAN bus and mainly applied in embedded networks of machine control, such as industrial machine automation, factory automation, control of medical equipments, remote data acquisition, environmental monitoring and control of packaging machines.
The CAN-2060C module follows the CiA -301 version 4.02 and CiA-401 version 2.1, and has passed the validation of the CiA CANopen Conformance Test tool. You can use it with the standard CANopen master interface easily by applying the provided EDS file. Both the CAN-2054C and CAN-2060C offer the 8-channel isolation digital input and 8-channel isolation digital output. The main difference between these two modules is the type of digital output channels. The CAN-2054C is sink type, and the CAN-2060C is source type. Like the CAN-2054C, the CAN-2060C can be used in various applications, such as PNP, NPN, TTL and relay contact.

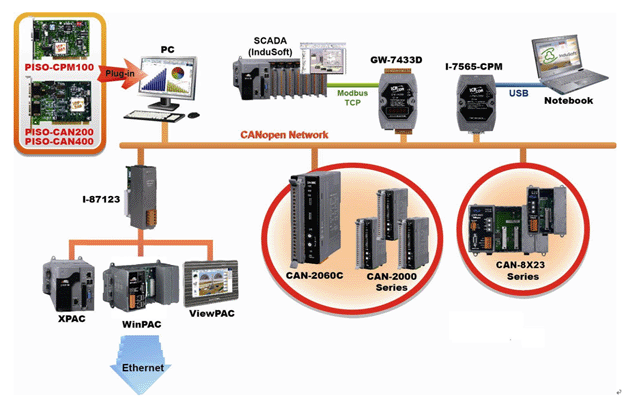

ICP DAS also provides various interface of the CANopen masters, you can quickly build a CANopen network to meet your requirements. For more information of the CANopen master interfaces and other CANopen products, please refer to the following web site:
https://www.icpdas.com/en/product/guide+Industrial__Communication+Fieldbus__Communication+CANopen#568




Hardware Features:

• ESD Protection 4 kV Contact for each channel.
• Intra-module Isolation 3750 Vrms.
• Provides Jumper for 120 Ω terminator resistors.
• Provides the pair-connection function
• Provides DI /DO LED’s display.
• Operating temperature -25 ~ +75 ℃
• PWN, RUN, ERROR LED indicator.
• 4-channel Relay output
• 4-channel isolated sink/source digital input



CANopen Communication Specifications:

• General Purpose CANopen slave I/O module.
• CANopen Version: CiA 301 v4.02.
• Device Profile: CiA 401 v2.1.
• Supports standard 8 kinds of the CANopen transfer rate, 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1000 kbps.
• Supports maximum Node-ID up to 99.
• Supports NMT, PDO, SDO, EMCY, SYNC, Guarding and Heartbeat protocols.
• Passes the validation of CiA CANopen Conformance Test tool.
• Provides default EDS File.

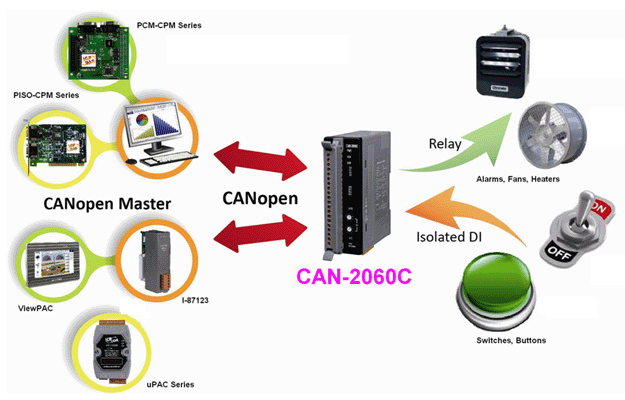

Application:

For more information, please visit the following website:
https://www.icpdas.com/en/product/CAN-2026C
