WF-2015 – Wi-Fi I/O module with 6-ch RTD Input
New Products
2016-10-18

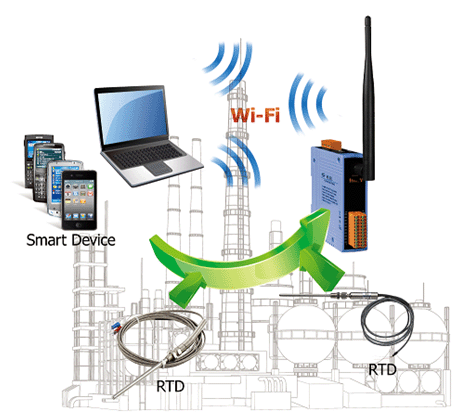

The WF-2015 is a Wi-Fi interface and 6-channel RTD input module for long-distance temperature measurement, and features automatic compensation for three-wire RTD sensor, meaning that accurate measurements can be obtained regardless of the length of the wires. The WF-2015 is fully RoHS-compliant and it features 4 kV ESD protection as well as 3000 VDC intra-module isolation. With the 802.11 network infrastructure, the WF-2015 provides an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2015 also supports Modbus/TCP & UDP protocols and the network encryption configuration, which makes perfect integration with SCADA software and users can easily and safely access the data from anytime and anywhere.
Features:
- 6-channel RTD Input
- 3-wire RTD Input with Lead Resistance Elimination
- Open Wire Detection
- Individual Channel Configuration
- Compatible with IEEE 802.11b/g standards
- Support WEP, WPA and WPA2 wireless encryption
- Support Modbus/TCP and UDP protocols
- Support DHCP network configuration
- 4 kV ESD/EFT Protection
- 3000 VDC Intra-module Isolation
- Built-in Watchdog
Specifications:
| Model Name | WF-2015 | WF-2017 | WF-2019 | WF-2026 | |
|---|---|---|---|---|---|
| Pictures |  |
 |
 |
 |
|
| I/O Type | Analog Input | Analog Input | Analog Input | Multi Function | |
| DI | Channel | - | - | - | 2 |
| Type | - | - | - | Dry | |
| Sink/Source | - | - | - | Source | |
| DO | Channel | - | - | - | 3 |
| Type | - | - | - | Open Collector | |
| Sink/Source | - | - | - | Sink | |
| AI | Channel | 6 | 8/16 | 10 | 5 |
| Wiring | 2/3-wire | Differential/ Single-Ended |
Differential | Differential | |
| Voltage & Current Input | - | +/-10 V, +/-5 V, +/-1 V, +/-500 mV, +/-150 mV, +4 ~ +20 mA , 0 ~ +20 mA, -20 mA ~ +20 mA |
±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V ±20 mA, |
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V ±20 mA , +0 ~ +20 mA, +4 ~ +20 mA |
|
| Sensor Input | RTD: Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000 |
- | Thermocouple : J, K, T, E, R, S, B, N, C |
||
| AO | Channel | - | - | -2 | |
| Voltage & Current Output | - | - | - | +0 ~ +5 VDC, +0 ~ +10 VDC, ±5 VDC, ±10 VDC, +0 ~ +20 mA, +4 ~ +20 mA |
|
For more information about the product, please refer to the following website: https://www.icpdas.com/en/product/WF-2015
