PROFIBUS is an open, digital communication system with a wide range of applications, particularly in the fields of factory and process automation. PROFIBUS is suitable for both fast, time-critical applications and complex communication tasks.

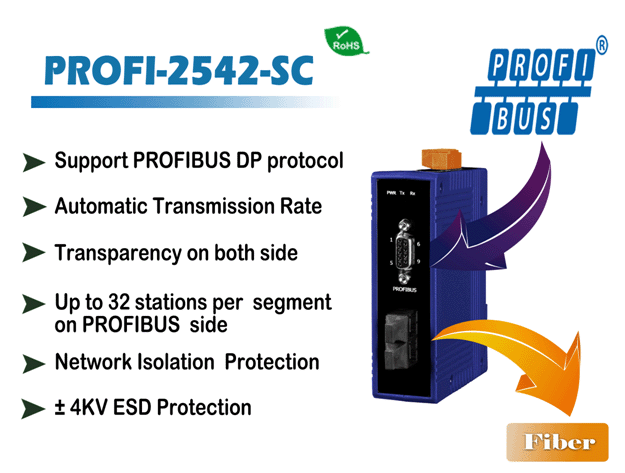

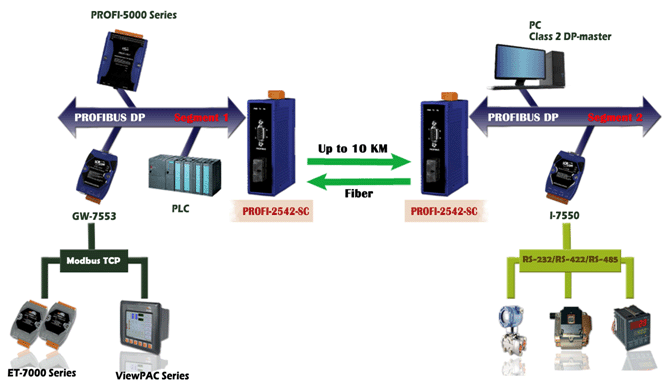

The PROFI-2542-SC is one of the PROFIBUS DP series products produced by ICP DAS. It supports transmission rate of 9.6Kbps to 12Mbps and detects the rate automatically. The PROFI-2542-SC provides ±4KV ESD protection contact for all terminals. By PROFI-2542-SC, users can secure PROFIBUS data transmission via single mode fiber optic which provides immunity from EMI/RFI interference. In general, it can be used in the application of building automation, remote data acquisition, environment control, environment monitoring, applications in laboratory equipment & research, and factory automation, etc.

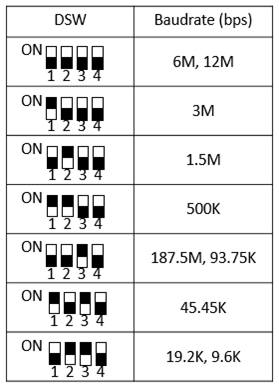

PROFIBUS Signal Quality:
Users can set dip switch to get a better PROFIBUS signal quality in PROFI-2542-SC module.




Features:

•  Support for PROFIBUS DP protocol
• Detect transmission rate automatically(Max. 12Mbps)
• Transparency on both side
• Up to 32 stations per segment on PROFIBUS side
• Fiber Wave Length: 1310 nm
• Network Isolation Protection
• 3000VDC isolation protection on PROFIBUS side
• 4KV ESD Protection (contact for any terminal)



Specifications:

For more information, please refer to: https://www.icpdas.com/en/product/PROFI-2542-SC
